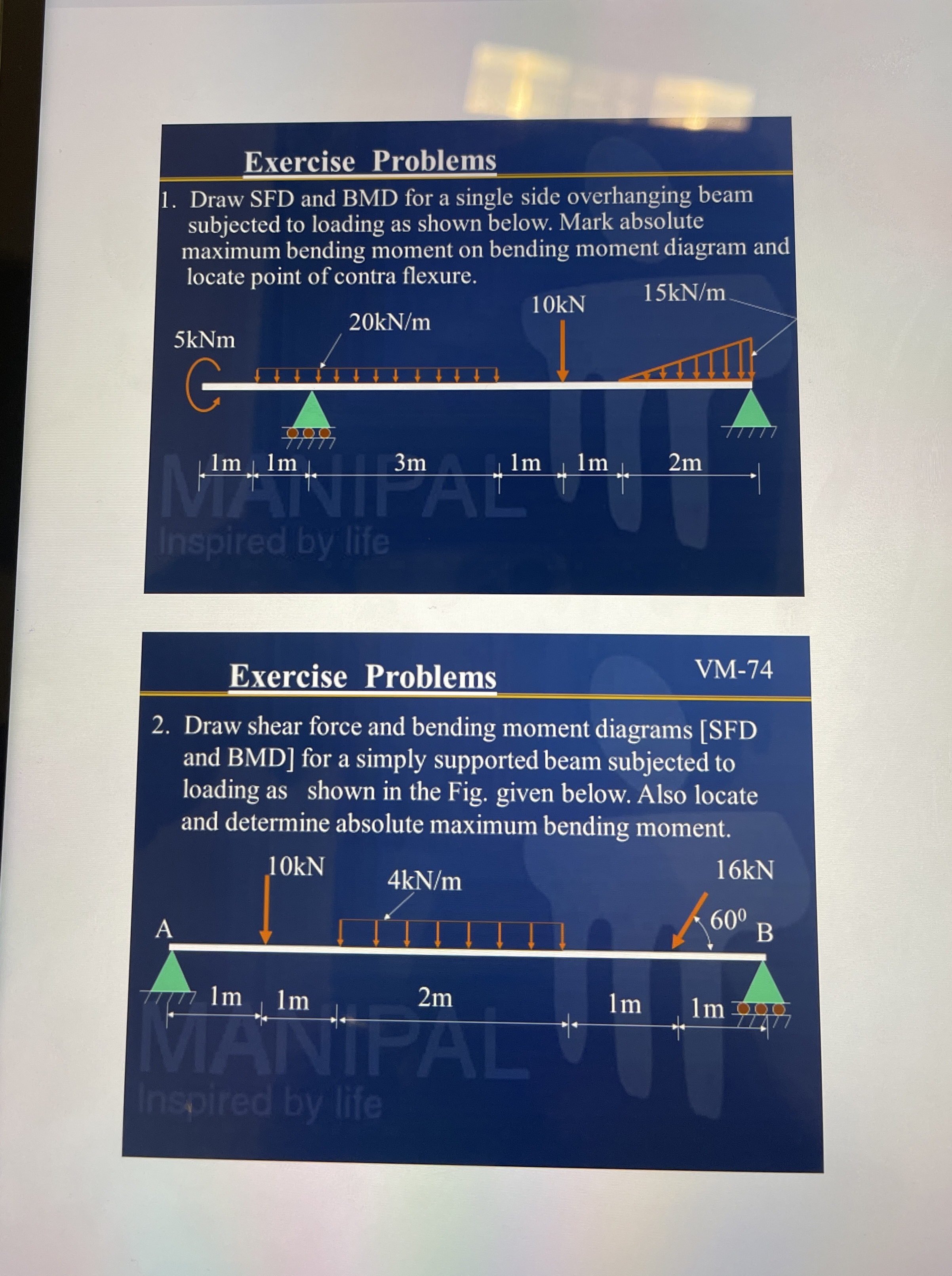

Question: Exercise Problems Draw SFD and BMD for a single side overhanging beam subjected to loading as shown below. Mark absolute maximum bending moment on bending

Exercise Problems
Draw SFD and BMD for a single side overhanging beam
subjected to loading as shown below. Mark absolute
maximum bending moment on bending moment diagram and
locate point of contra flexure.
Exercise Problems
Draw shear force and bending moment diagrams [SFD
and BMD] for a simply supported beam subjected to
loading as shown in the Fig. given below. Also locate
and determine absolute maximum bending moment.
Exercise Problems Draw SFD and BMD for a single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Draw SFD and BMD for the single side overhanging beam subjected to loading as shown below. Determine the absolute maximum bending moment and shear forces and mark them on SFD and BMD . Also locate...

Q:

A single side overhanging beam subjected to loading as shown in Fig. Q 1 . i . Sketch the SFD and hence determine the reactive force on the beam at the wall. [ 1 0 marks ] ii . Sketch the BMD and...

Q:

One side overhanging beam is subjected loading as shown below. Draw shear force and bending moment diagrams [ SFD and BMD ] for beam. Also determine maximum hogging bending moment.
