Question: EXPERIMENT 1 The S-R latch is a rather simple circuit. A simple circuit using two NOR gates is reproduced below, from the textbook (a) Active-HIGH

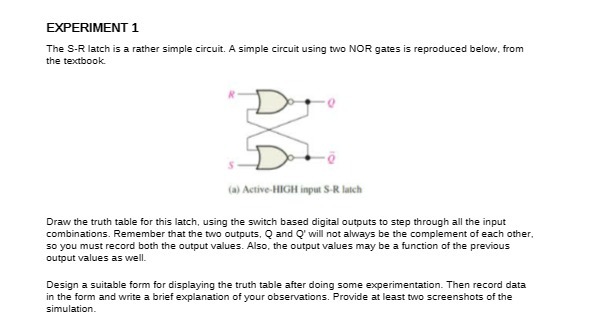

EXPERIMENT 1 The S-R latch is a rather simple circuit. A simple circuit using two NOR gates is reproduced below, from the textbook (a) Active-HIGH input S-R latch Draw the truth table for this latch, using the switch based digital outputs to step through all the input combinations. Remember that the two outputs, Q and Q' will not always be the complement of each other, so you must record both the output values. Also, the output values may be a function of the previous output values as well. Design a suitable form for displaying the truth table after doing some experimentation. Then record data in the form and write a brief explanation of your observations. Provide at least two screenshots of the simulation
