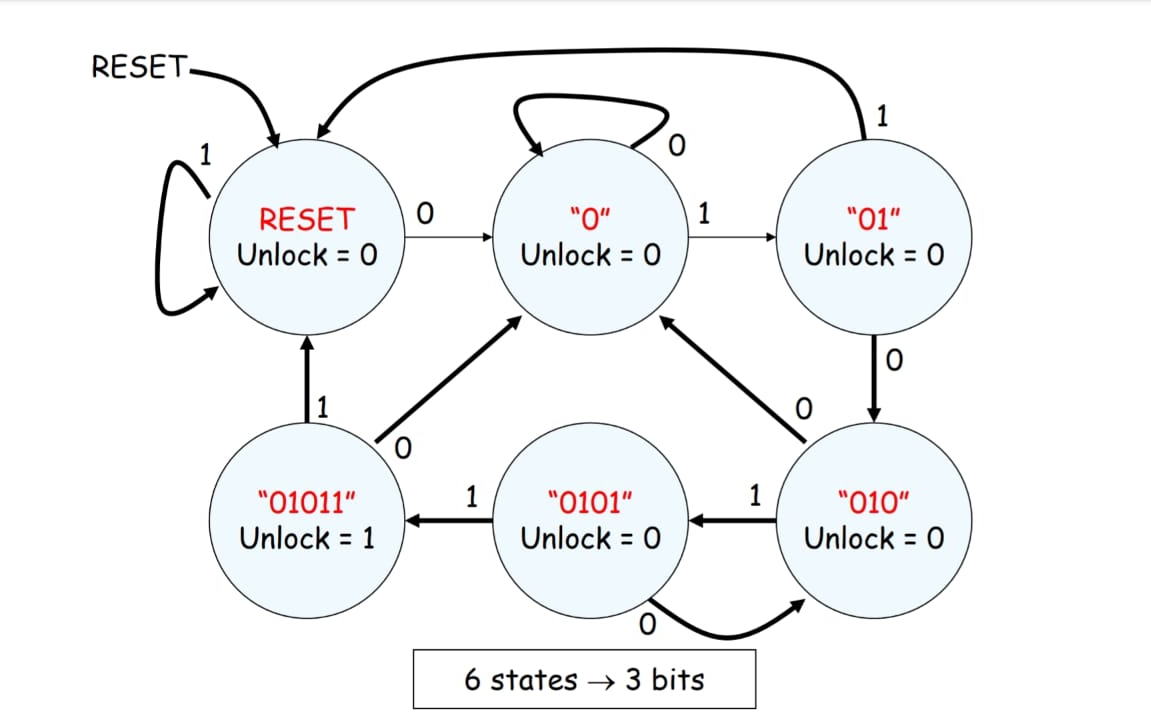

Question: Explain this state transition diagram. Make its state transition table and form equations for S 0 ' , S 1 ' , S 2 '

Explain this state transition diagram. Make its state transition table and form equations for S0', S1',S2', using k map
Explain this state transition diagram. Make its state transition table and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
