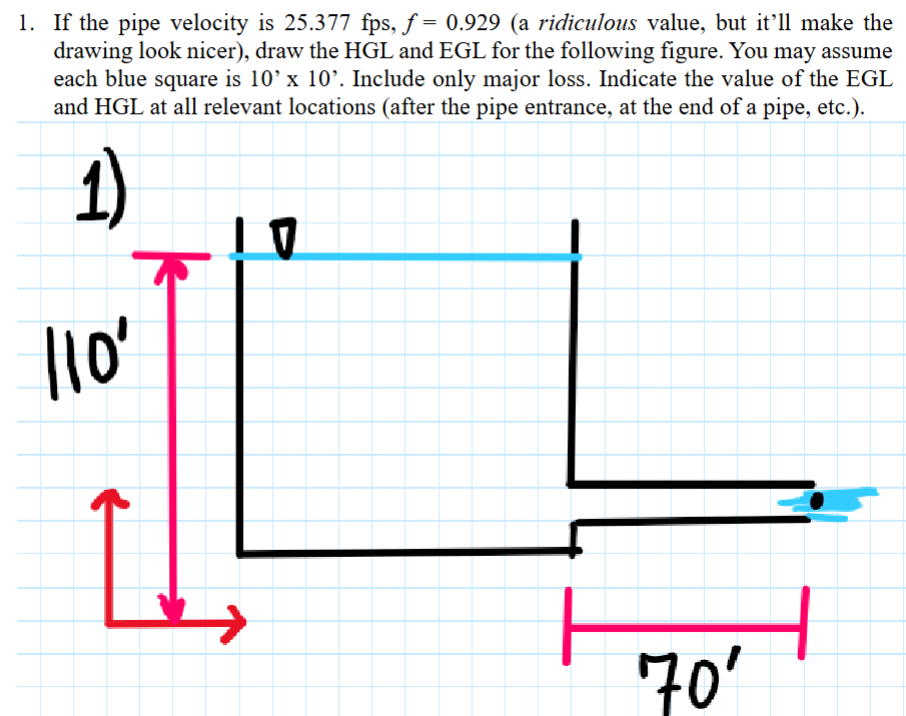

f the pipe velocity is $25\mathrm{.}377$ fps$,$ f $=0\mathrm{.}929($a ridiculous value, but it$$ll make the

drawing look nicer$),$ draw the HGL and EGL for the following figure. You may assume

each blue square is $10$ x $10.$ Include only major loss. Indicate the value of the EGL

and HGL at all relevant locations $($after the pipe entrance, at the end of a pipe, etc.$).$
