Question: Fig. 2 A control system block diagram [ 2 0 pt . ] A control system block diagram is shown in Fig. 2 . a

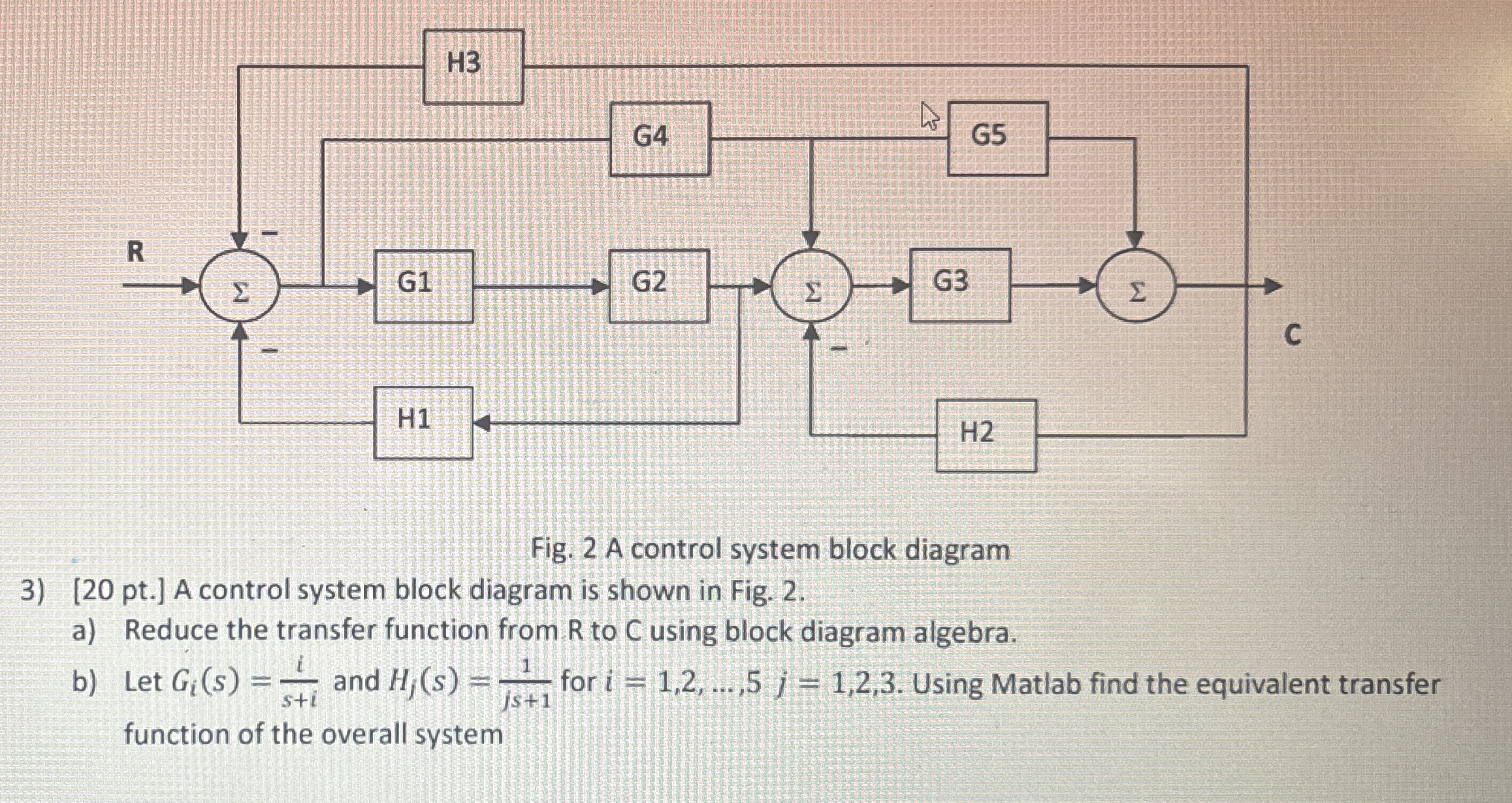

Fig. 2 A control system block diagram
[20 pt.] A control system block diagram is shown in Fig. 2.
a) Reduce the transfer function from R to C using block diagram algebra.
b) Let Gi(s)=is+i and Hj(s)=1js+1 for i=1,2,dots,5j=1,2,3. Using Matlab find the equivalent transfer function of the overall system
Fig. 2 A control system block diagram [ 2 0 pt .
