Figure $1$ Part $1$: Giving that, after applying Depth$-$first search $($DFS$),$ the visited nodes are as follows:

A$-$B$-$E$-$F$-$G$-$C$-$H$-$D$-$I$-$J

Assuming the order of the nodes are in alphabetic order ABC, and the starting node is A:

$1.$ Draw the graph tree for this problem. $(5$ points$)$

$2.$ Visit all the nodes using the Breadth$-$first search $($BFS$).(5$ points$)$

$3.$ If the goal is to reach node G from node A$,$ show the solution after applying both BFS and DFS and show which algorithm is faster. $(5$ points$)$

$[$Total: $15]$

Screenshot $2023-11-02152026$

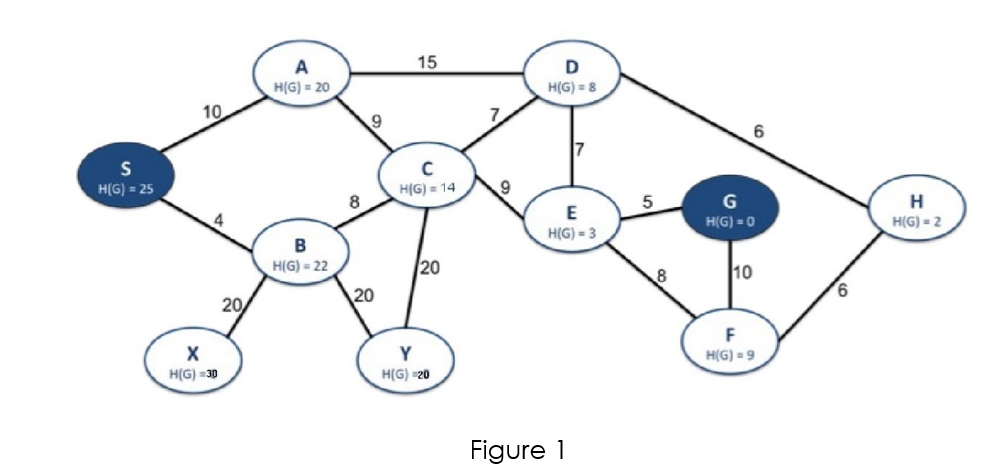

Part $2$: From the figure $1,$ the goal is to reach the node G from the start node S$.$ Giving that, if you are visiting node A$,$ the estimated heuristic value from A to G is h$($G$)=20,$ and the cost value from node A to node S is g$($S$)=10.$

$1.$ Apply the A$*$ heuristic algorithm to find the best path from S to G$.($show all the steps$).(5$ points$\}$

$2.$ Solve this problem using Greedy algorithm. $(3$ points$)$

$3.$ Compare between the two solutions.

$4.$ Build the search tree and apply the Depth$-$first search. $(7$ points$)$

a$.$ The node should appear just one time.

b$.$ The expanded nodes should be in order $($i$.$e$.,$ from S$,$ the children will be ordered A then B$,$ and from A the children will be C then D$)$

$[$Total: $15$ points$]$

Part $3$: Compare between the uninformed search and the informed search. $(5$ points$)$

$1$

$15$

$2$

$15$

$3$

$5$

Total

$35\%$
