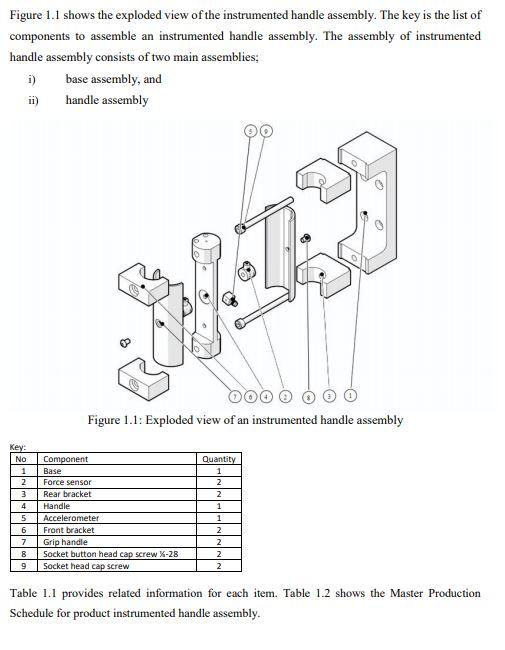

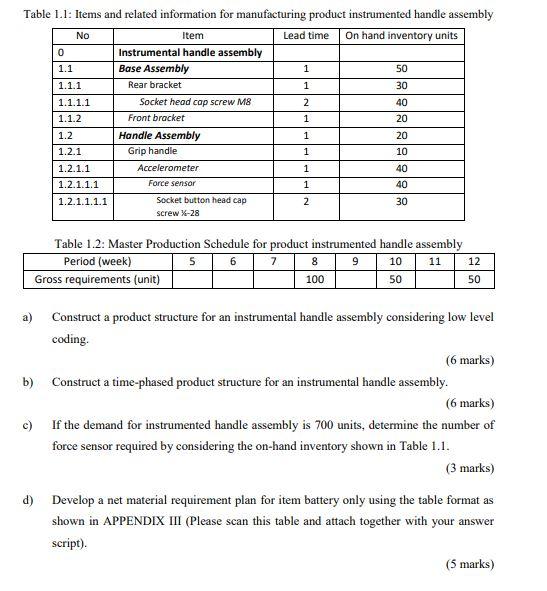

Figure 1.1 shows the exploded view of the instrumented handle assembly. The key is the list of components to assemble an instrumented handle assembly. The assembly of instrumented handle assembly consists of two main assemblies; base assembly, and i handle assembly Figure 1.1: Exploded view of an instrumented handle assembly Keys No 1 2 3 Quantity 1 2 2 4 5 6 7 8 9 Component Base Force sensor Rear bracket Handle Accelerometer Front bracket Grip handle Socket button head cap screw X-28 Socket head cap screw 1 1 2 2 2 2 Table 1.1 provides related information for each item. Table 1.2 shows the Master Production Schedule for product instrumented handle assembly. Table 1.1: Items and related information for manufacturing product instrumented handle assembly No Item Lead time On hand inventory units 0 Instrumental handle assembly 1.1 Base Assembly 1 50 1.1.1 Rear bracket 1 30 1.1.1.1 Socket head cap screw M8 2 40 1.1.2 Front bracket 1 20 1.2 Handle Assembly 1 20 1.2.1 Grip handle 1 10 1.2.1.1 Accelerometer 1 40 1.2.1.1.1 Force sensor 1 40 1.2.1.1.1.1 Socket button head cap 2 30 screw X-28 Table 1.2: Master Production Schedule for product instrumented handle assembly Period (week) 5 6 7 8 9 10 11 12 Gross requirements (unit) 100 50 50 a) Construct a product structure for an instrumental handle assembly considering low level coding. (6 marks) b) Construct a time-phased product structure for an instrumental handle assembly. (6 marks) c) If the demand for instrumented handle assembly is 700 units, determine the number of force sensor required by considering the on-hand inventory shown in Table 1.1. (3 marks) d) Develop a net material requirement plan for item battery only using the table format as shown in APPENDIX III (Please scan this table and attach together with your answer script). (5 marks) Figure 1.1 shows the exploded view of the instrumented handle assembly. The key is the list of components to assemble an instrumented handle assembly. The assembly of instrumented handle assembly consists of two main assemblies; base assembly, and i handle assembly Figure 1.1: Exploded view of an instrumented handle assembly Keys No 1 2 3 Quantity 1 2 2 4 5 6 7 8 9 Component Base Force sensor Rear bracket Handle Accelerometer Front bracket Grip handle Socket button head cap screw X-28 Socket head cap screw 1 1 2 2 2 2 Table 1.1 provides related information for each item. Table 1.2 shows the Master Production Schedule for product instrumented handle assembly. Table 1.1: Items and related information for manufacturing product instrumented handle assembly No Item Lead time On hand inventory units 0 Instrumental handle assembly 1.1 Base Assembly 1 50 1.1.1 Rear bracket 1 30 1.1.1.1 Socket head cap screw M8 2 40 1.1.2 Front bracket 1 20 1.2 Handle Assembly 1 20 1.2.1 Grip handle 1 10 1.2.1.1 Accelerometer 1 40 1.2.1.1.1 Force sensor 1 40 1.2.1.1.1.1 Socket button head cap 2 30 screw X-28 Table 1.2: Master Production Schedule for product instrumented handle assembly Period (week) 5 6 7 8 9 10 11 12 Gross requirements (unit) 100 50 50 a) Construct a product structure for an instrumental handle assembly considering low level coding. (6 marks) b) Construct a time-phased product structure for an instrumental handle assembly. (6 marks) c) If the demand for instrumented handle assembly is 700 units, determine the number of force sensor required by considering the on-hand inventory shown in Table 1.1. (3 marks) d) Develop a net material requirement plan for item battery only using the table format as shown in APPENDIX III (Please scan this table and attach together with your answer script)
