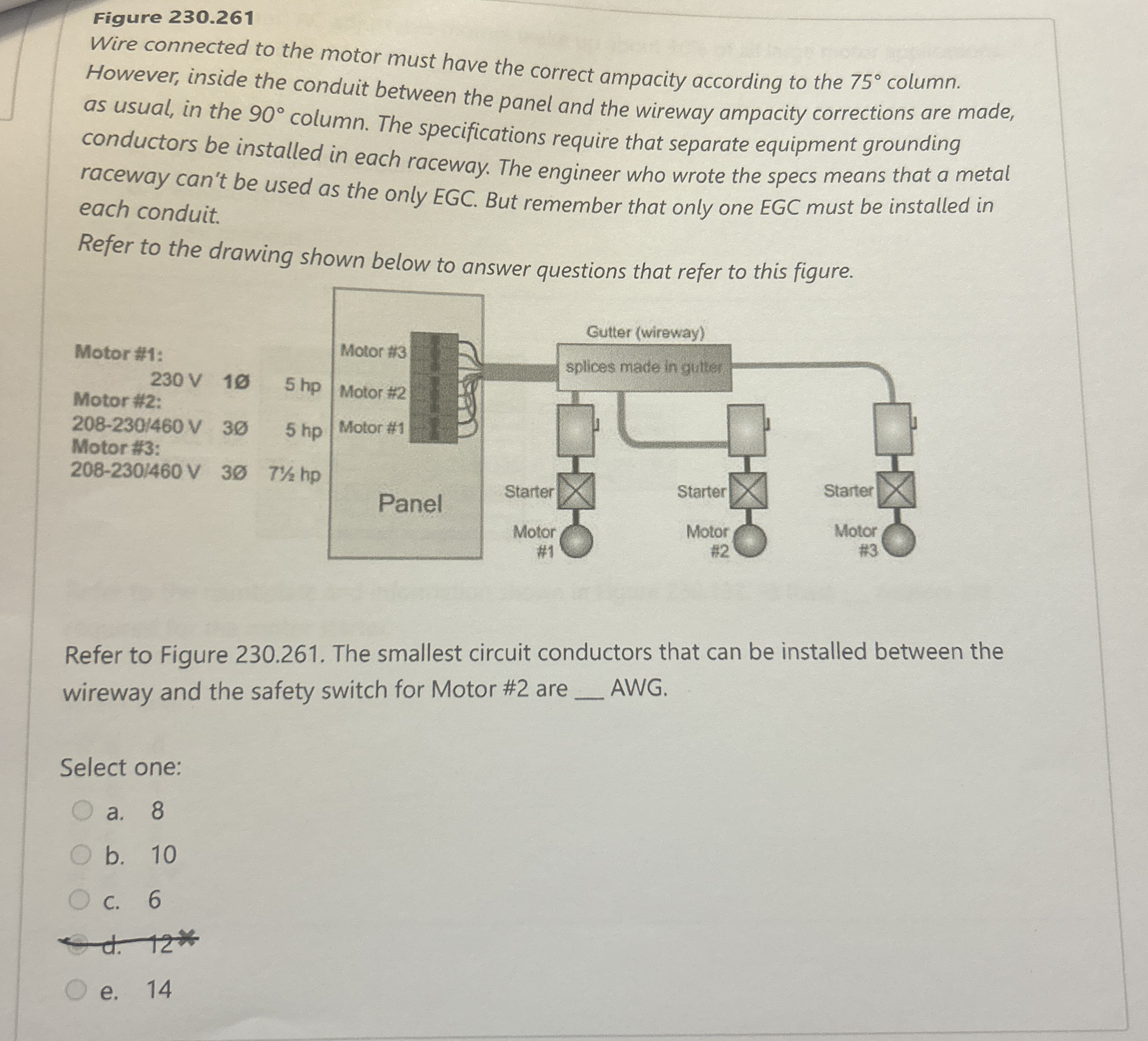

Figure $230\mathrm{.}261$

Wire connected to the motor must have the correct ampacity according to the $75$ column.

However, inside the conduit between the panel and the wireway ampacity corrections are made, as usual, in the $90$ column. The specifications require that separate equipment grounding conductors be installed in each raceway. The engineer who wrote the specs means that a metal raceway can't be used as the only EGC. But remember that only one EGC must be installed in each conduit.

Refer to the drawing shown below to answer questions that refer to this figure.

Refer to Figure $230\mathrm{.}261.$ The smallest circuit conductors that can be installed between the wireway and the safety switch for Motor #$2$ are $q,$ AWG.

Select one:

a$.8$

b$.10$

c$.6$

e$.14$
