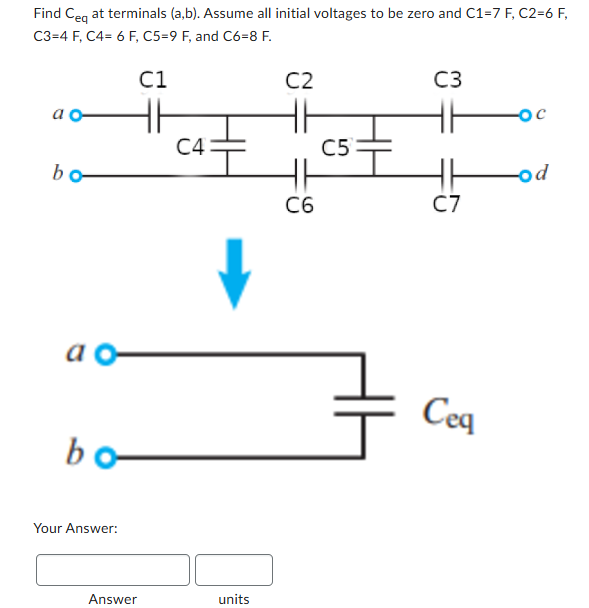

Question: Find C _ ( eq ) at terminals ( a , b ) . Assume all initial voltages to be zero and C 1 =

Find C_(eq) at terminals (a,b). Assume all initial voltages to be zero and C1=7F,C2=6F,
C3=4F,C4=6F,C5=9F, and C6=8F.
Your Answer:
Find C _ ( eq ) at terminals ( a , b ) . Assume

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
