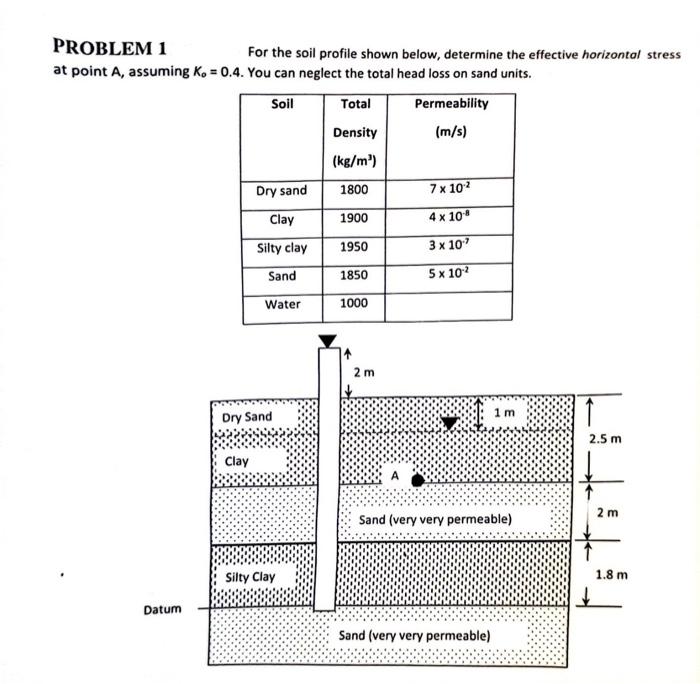

Question: find the total head, head elevation, head pressure at every section of the soil profile

find the total head, head elevation, head pressure at every section of the soil profile
find the total head, head elevation, head

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

PARTA Consider a 4 - layer soil profile with the following characteristics ( top to bottom ) : ( i ) A 4 - ft sand layer with a unit weight of 1 1 8 p c f ; ( ii ) A 7 - ft sand layer with a unit...

Q:

Problem 3 For the soils and water profiles provided in Figure 1 , calculate the variation of elevation head, fluid pressure head, and total head with elevation. In addition, use the Darcy's law to...

Q:

Units of length on the diagram are in feet [ ft ] . Assume a datum at the very bottom of the figure. Calculate the head loss in each of the soil layers. Calculate the hydraulic gradient in the clay...

Q:

HW 0 6 : Stresses with Flow Units of length on the diagram are in feet [ ft ] . Assume a datum at the very bottom of the figure. 1 . Calculate the head loss in each of the soil layers. 2 . Calculate...

Q:

Problem 4 For the soils and water profiles provided in Figure 1 , calculate the variation of elevation head, fluid pressure head, and total head with elevation. In addition, use the Darcy's law to...

Q:

1 . Calculate the head loss in each of the soil layers. 2 . Calculate the hydraulic gradient in the clay and sand layers. 3 . Find the total vertical stress, pore water pressure and effective stress...

Q:

4 . Figure P 4 shows a setup for circulating flow through two specimens consisting of different soils and with different tube diameters. The permeability, area of flow and unit weight for each...

Q:

An open-ended cylindrical standpipe contains a soil specimen as shown below. The soil is saturated with void ratio=0.75 and specific gravity = 2.7. Assuming both water levels are held at constant...

Q:

At point A in the soil sample below ( see figure ) , calculate the pressure head, elevation head, total head and pore water pressure. Also determine the initial hydraulic gradient across the sample....

Q:

Example 5 . 9 For the setup shown, Find total head ( h t ) , Elevation head ( h e ) and Pressure head ( h p ) for the soil the setup shown.
