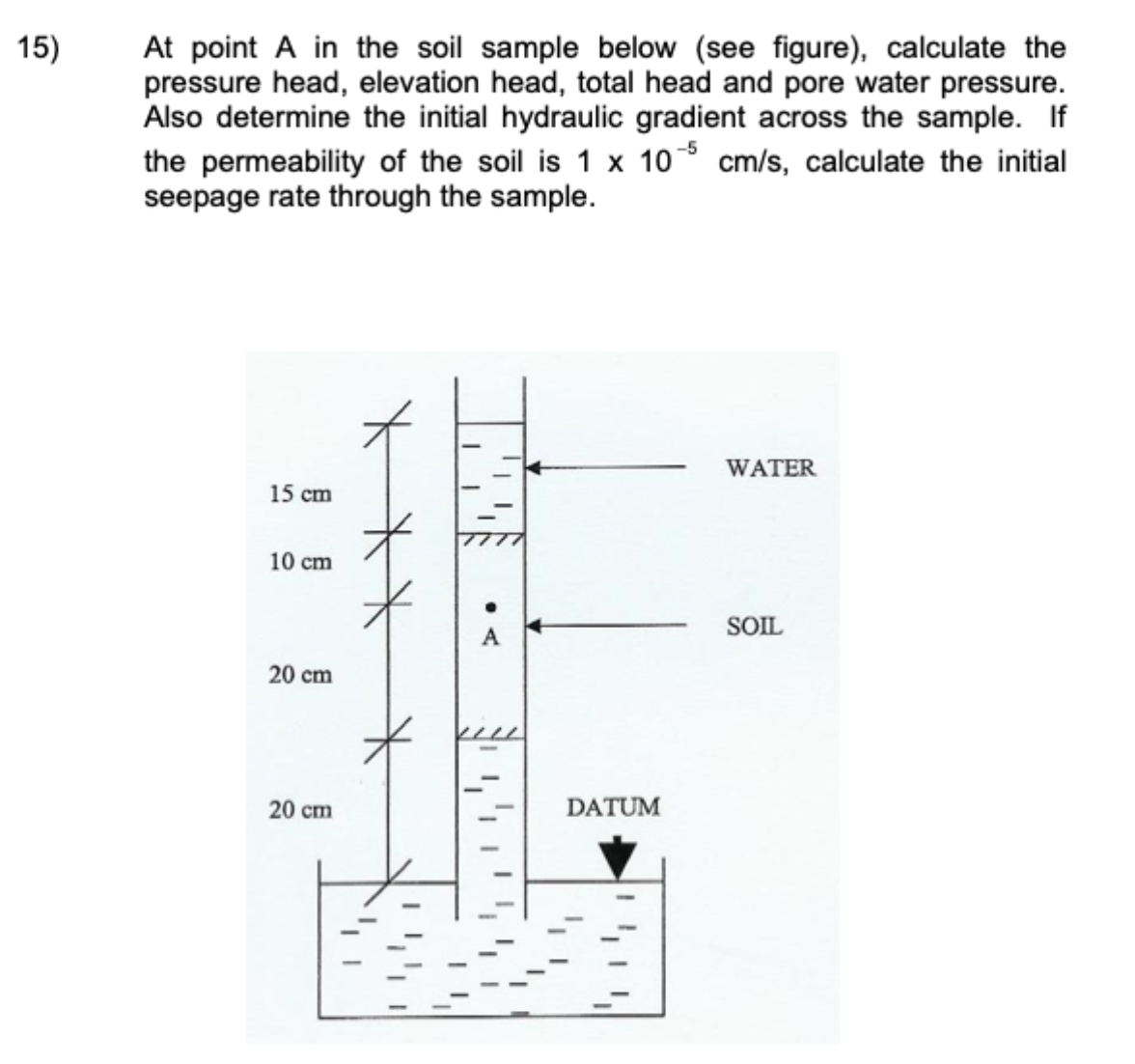

Question: At point A in the soil sample below ( see figure ) , calculate the pressure head, elevation head, total head and pore water pressure.

At point A in the soil sample below (see figure), calculate the
pressure head, elevation head, total head and pore water pressure.
Also determine the initial hydraulic gradient across the sample. If
the permeability of the soil is 110-5cms, calculate the initial
seepage rate through the sample.
At point A in the soil sample below ( see figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
