finite elements beam analysis $-$

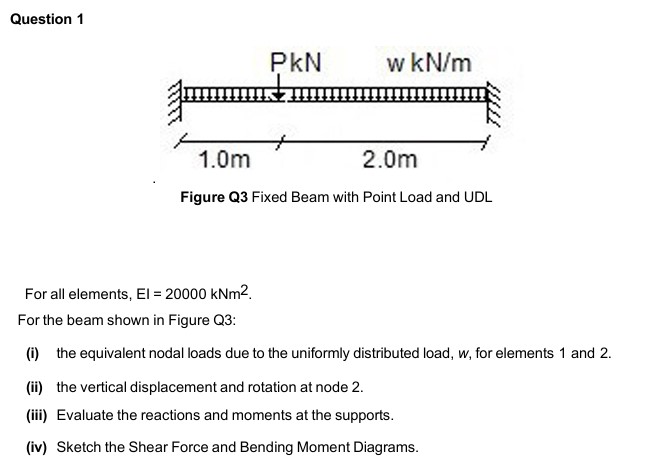

Question $1$ Fixed Beam with Point Load and UDL$-$ P $($point load$)=28$kN and w $($UDL$)=22$ kN$/$m $,$ Length $1$m and $2$m $=3$m$.$

Question $1$

For all elements, EI$=20000$kNm$^(2).$

For the beam shown in Figure Q$3$:

$($i$)$ the equivalent nodal loads due to the uniformly distributed load, w$,$ for elements $1$ and $2.$

$($ii$)$ the vertical displacement and rotation at node $2.$

$($iii$)$ Evaluate the reactions and moments at the supports.

$($iv$)$ Sketch the Shear Force and Bending Moment Diagrams. then i need help with Question $2$Two span Continuous Beam $-$ ; L $=2$ m and w $=16$ kN$/$m

Take EI $\backslash (=20000\backslash$mathrm$\{$kNm$\}^\{2\}\backslash )$

For the beam shown in Figure Q$6$:

$($i$)$ the equivalent nodal loads due to the uniformly distributed load, $\backslash ($ w $\backslash ),$ for element $2.$

$($ii$)$ the rotations at nodes $2$ and $3.$

$($iii$)$ Sketch the Bending Moment Diagram.
