Question: first pic is question and second pic is example on how it should be solved, draw like this, plz any other answers will be downvoted.

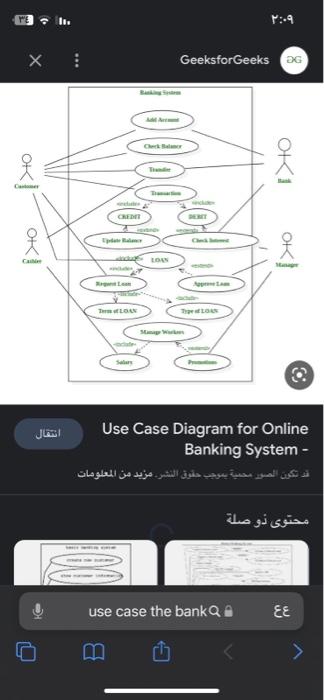

first pic is question and second pic is example on how it should be solved, draw like this, plz any other answers will be downvoted.
first pic is question and second pic is example on how it
should be solved, draw like this, plz any other answers will be

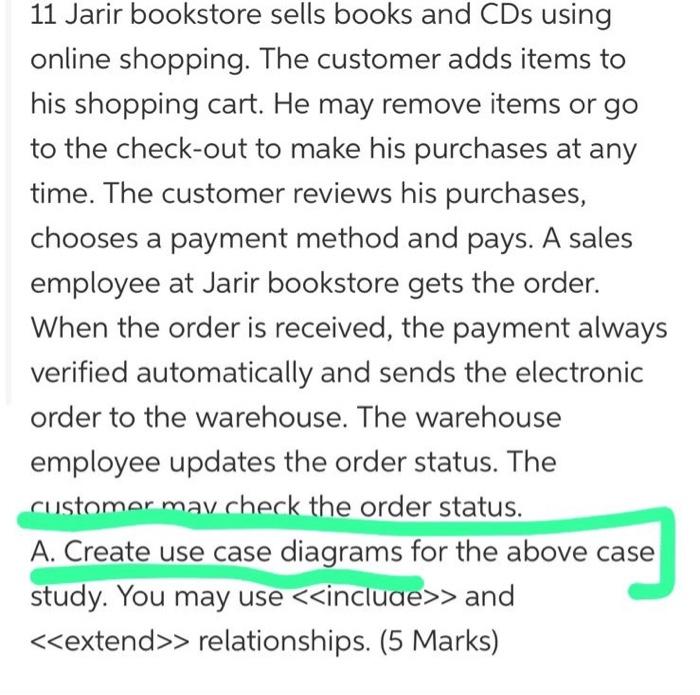

11 Jarir bookstore sells books and CDs using online shopping. The customer adds items to his shopping cart. He may remove items or go to the check-out to make his purchases at any time. The customer reviews his purchases, chooses a payment method and pays. A sales employee at Jarir bookstore gets the order. When the order is received, the payment always verified automatically and sends the electronic order to the warehouse. The warehouse employee updates the order status. The rustomor mav rheck the order status. A. Create use case diagrams for the above case study. You may use >> and > relationships. (5 Marks) Banking System
