Question: Fiven: Consider the truss shown below with the loading on joints D and E . Find: Use the method of joints to determine the load

Fiven: Consider the truss shown below with the loading on joints

D

and

E .

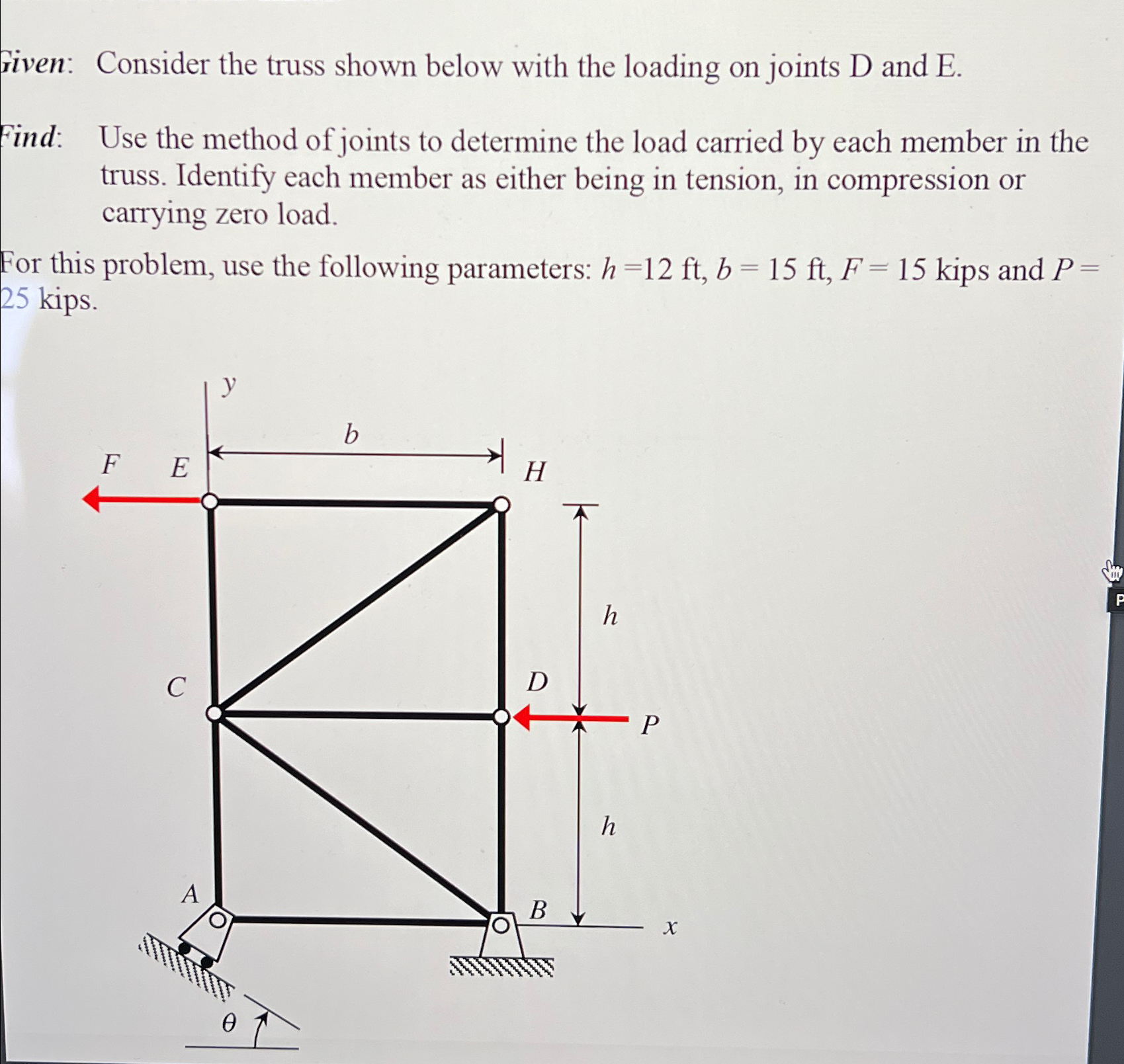

Find: Use the method of joints to determine the load carried by each member in the truss. Identify each member as either being in tension, in compression or carrying zero load.

For this problem, use the following parameters:

h = 12 f t, b = 15 f t, F = 15

kips and

P = 25

kips.

Fiven: Consider the truss shown below with the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Consider the truss shown below with the loading on joints D and E. Find: Use the method of joints to determine the load carried by each member in the truss. Identify each member as either being in...

Given: Consider the truss shown below with the loading on joints D and E . Find: Use the method of joints to determine the load carried by each member in the truss. Identify each member as either...

Given: Consider the truss shown below with the loading on joints D and H. Find: Determine the load carried by all members in the truss. Identify each member as either being in tension, in compression...

Given: Consider the truss shown below with the loading on joints D , K , S and U . Find: For this problem: a ) Identify all zero - force members in the truss. b ) Determine the external reactions...

Given: Consider the truss shown below with the loading on joints D, E, I and H, in addition to the loading due to the weight W of the block that is supported by the cable-pulley system shown, where...

Homework H 2 2 . B Given: Consider the truss shown below with the loading on joints D , E , I and N , in addition to the loading due to the weight W of the block that is supported by the cable -...

Given: Consider the truss shown below with the loading on joints B and C. Find: Determine the load carried by all members in the truss. Identify each member as either being in tension, in compression...

Homework H 2 1 . B Given: Consider the truss shown below with the loading on joints B and C . Find: Determine the load carried by all members in the truss. Identify each member as either being in...

Given: Consider the truss shown below with the loading on joints B, I and H. Find: Determine the load carried members 1, 2 and 3. Identify each member as either being in tension, in compression or...
