Question: Homework H 2 1 . B Given: Consider the truss shown below with the loading on joints B and C . Find: Determine the load

Homework H

21 .

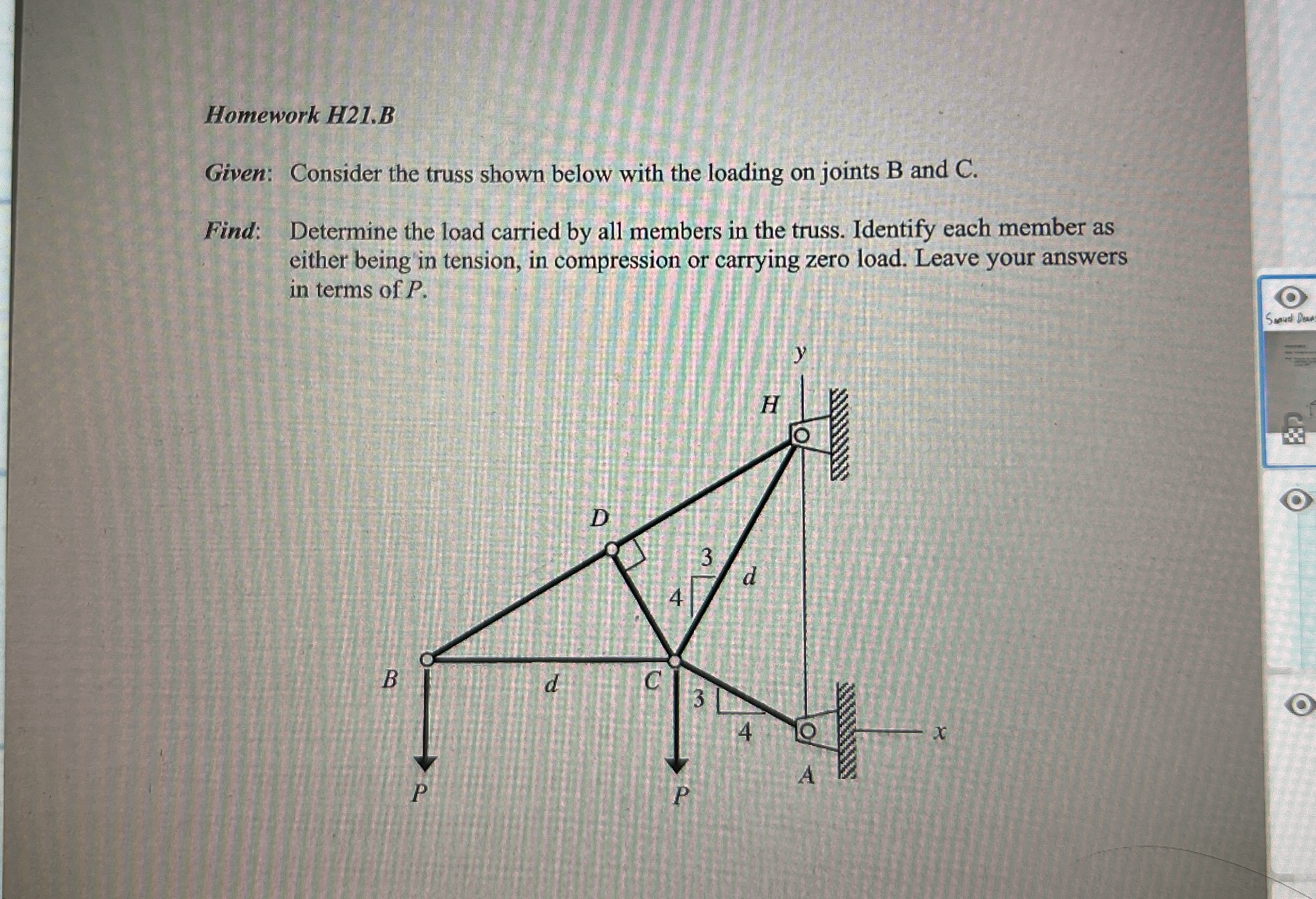

Given: Consider the truss shown below with the loading on joints

B

and

C .

Find: Determine the load carried by all members in the truss. Identify each member as either being in tension, in compression or carrying zero load. Leave your answers in terms of

P .

Homework H 2 1 . B Given: Consider the truss

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Given: Consider the truss shown below with the loading on joints D, E, I and H, in addition to the loading due to the weight W of the block that is supported by the cable-pulley system shown, where...

Given: Consider the truss shown below with the loading on joints B, I and H. Find: Determine the load carried members 1, 2 and 3. Identify each member as either being in tension, in compression or...

Homework H 2 2 . B Given: Consider the truss shown below with the loading on joints D , E , I and N , in addition to the loading due to the weight W of the block that is supported by the cable -...

Given: Consider the truss shown below with the loading on joints D , K , S and U . Find: For this problem: a ) Identify all zero - force members in the truss. b ) Determine the external reactions...

Given: Consider the truss shown below with the loading on joints D and H. Find: Determine the load carried by all members in the truss. Identify each member as either being in tension, in compression...

Homework H 2 3 . A Given: Consider the truss shown below with the loading on joint V . Find: For this problem: a ) Identify all zero - force members in the truss. b ) Determine the load carried by...

Given: Consider the truss shown below with the loading on joints B and C. Find: Determine the load carried by all members in the truss. Identify each member as either being in tension, in compression...

Given: Consider the truss shown below with the loading on joints D and E . Find: Use the method of joints to determine the load carried by each member in the truss. Identify each member as either...

Given: Consider the truss shown below with the loading on joint V. Find: For this problem: a) Identify all zero-force members in the truss. b) Determine the load carried by members HJ, HK, HI and E1...
