Question: Given: Consider the truss shown below with the loading on joints D, E, I and H, in addition to the loading due to the weight

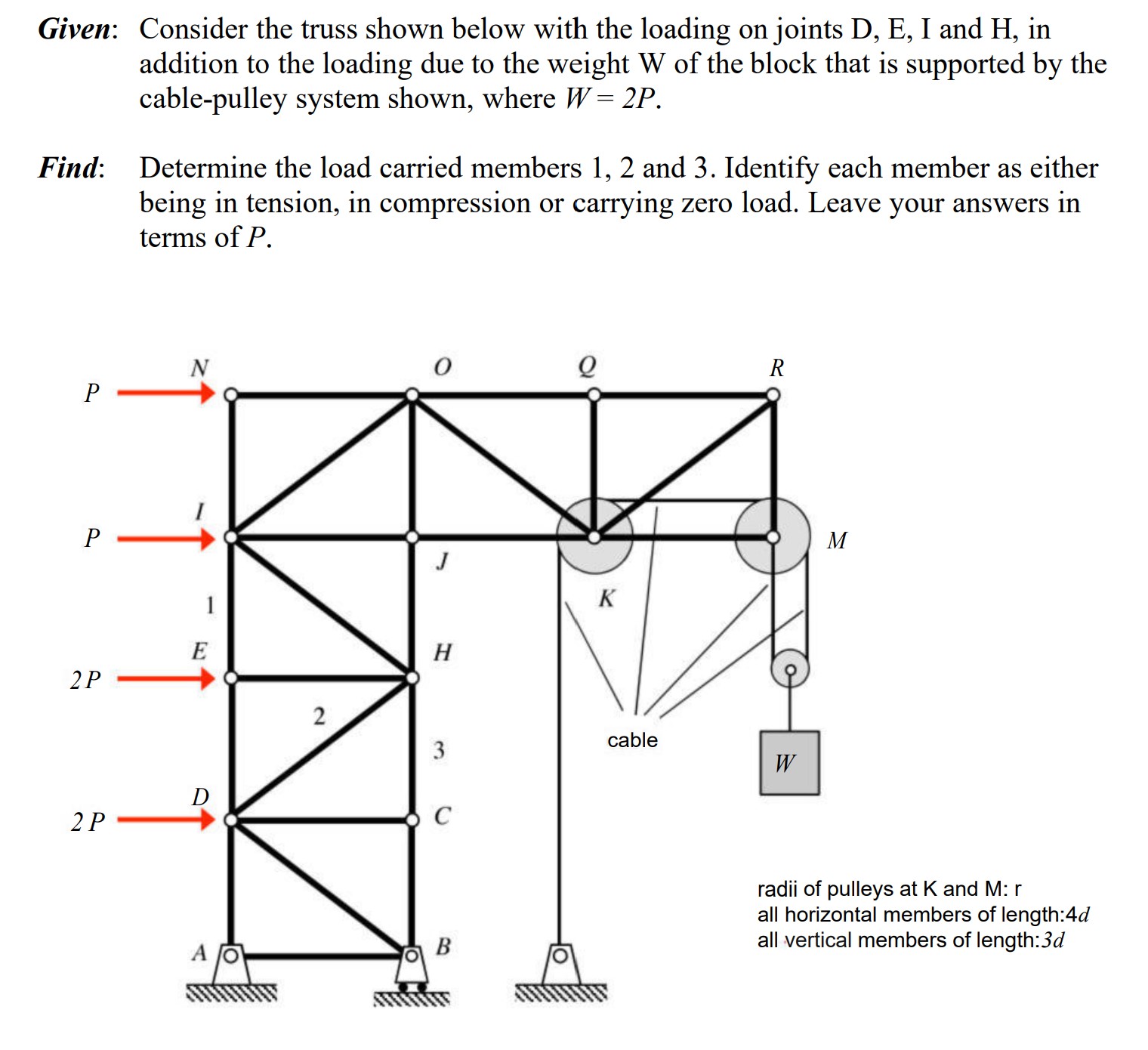

Given: Consider the truss shown below with the loading on joints D, E, I and H, in addition to the loading due to the weight W of the block that is supported by the cable-pulley system shown, where W: 2P. Find: Determine the load carried members 1, 2 and 3. Identify each member as either being in tension, in compression or carrying zero load. Leave your answers in terms of P. radii of pulleys at K and M: r all horizontal members of lengthz4d all vertical members of |ength:3d

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
