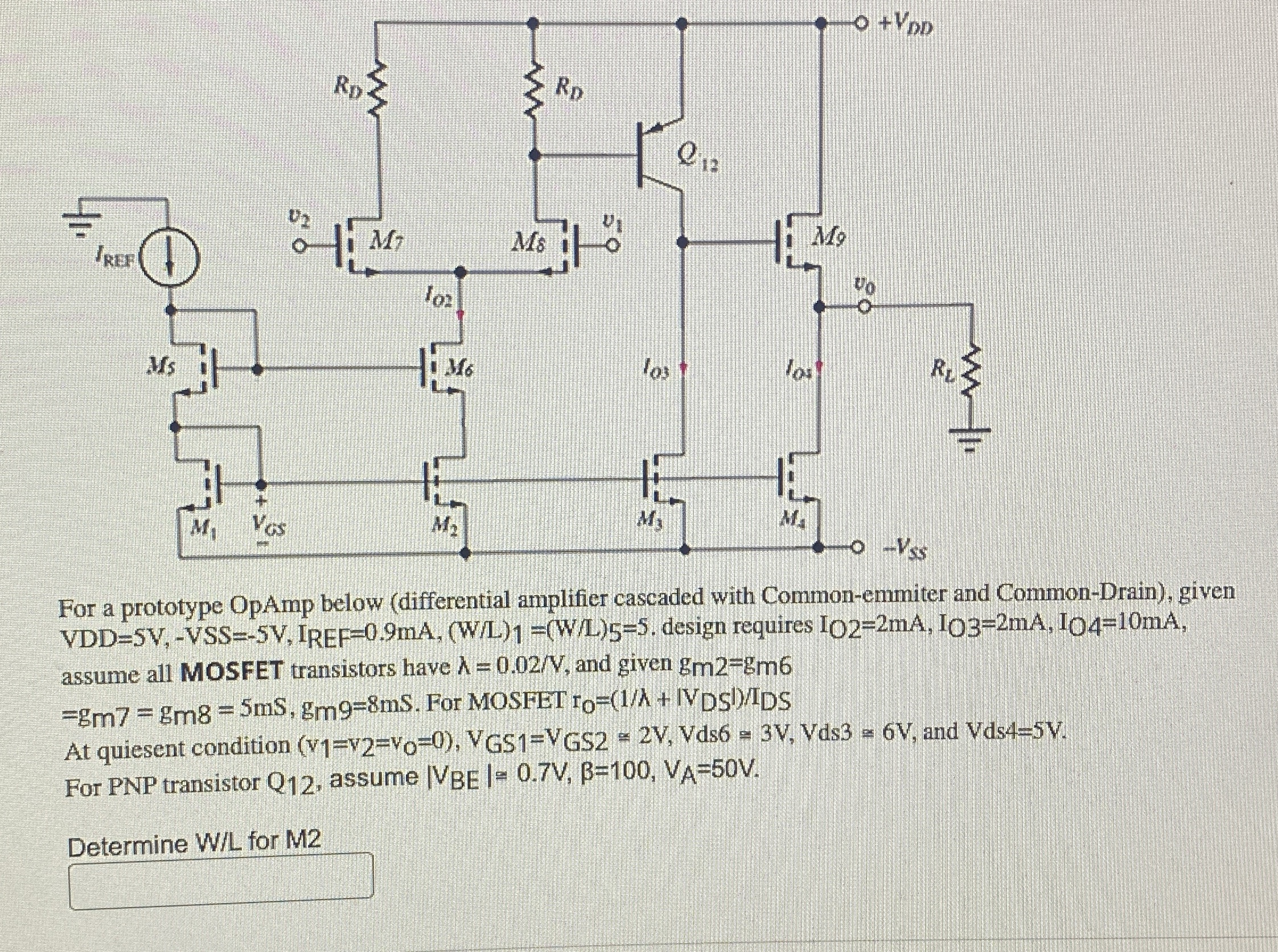

Question: For a prototype OpAmp below ( differential amplifier cascaded with Common - emmiter and Common - Drain ) , given . design requires I O

For a prototype OpAmp below (differential amplifier cascaded with Common-emmiter and Common-Drain), given . design requires IO2=2mA,IO3=2mA,104=10mA, assume all MOSFET transistors have =0.02V, and given gm2=gm6
=gm7=gm8=5mS,gm9=8mS. For MOSFET rO=1+IVDSDDS
At quiesent condition
For a prototype OpAmp below ( differential

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
