Question: For a prototype OpAmp, given VDD = 9 V , - VSS = - 9 V , and given g m 2 = g m

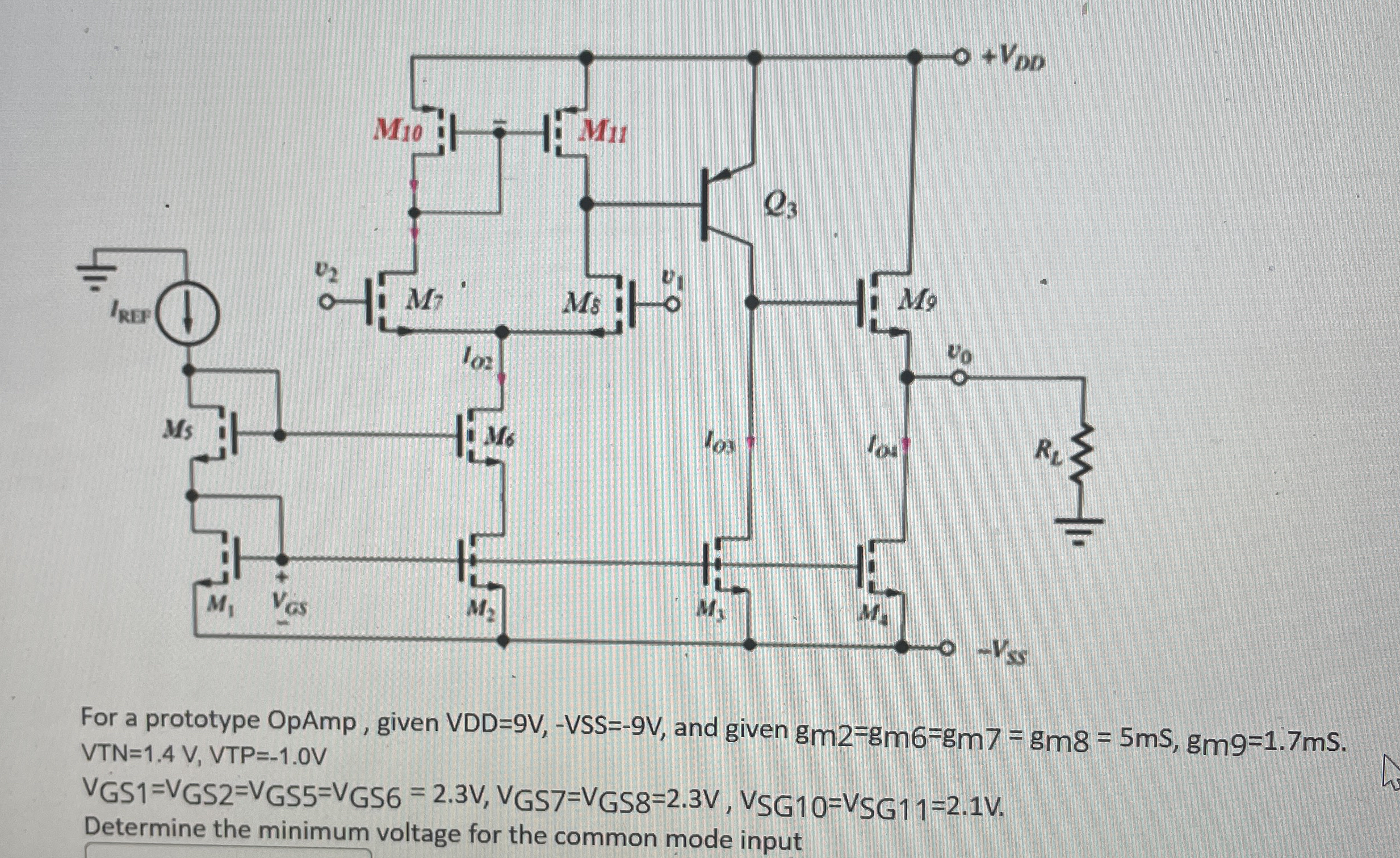

For a prototype OpAmp, given VDD=9V,-VSS=-9V, and given gm2=gm6=gm7=gm8=5mS,gm9=1.7ms. VTN=1.4 V, VTP=-1.0V
VGS1=VGS2=VGS5=VGS=2.3V,VGS=VGS=2.3V,VSG10=VSG11=2.1V
Determine the minimum voltage for the common mode input
