Question: For each system shown below, find the following: [ Section: 7 . 6 ] ( a ) The system type ( b ) The appropriate

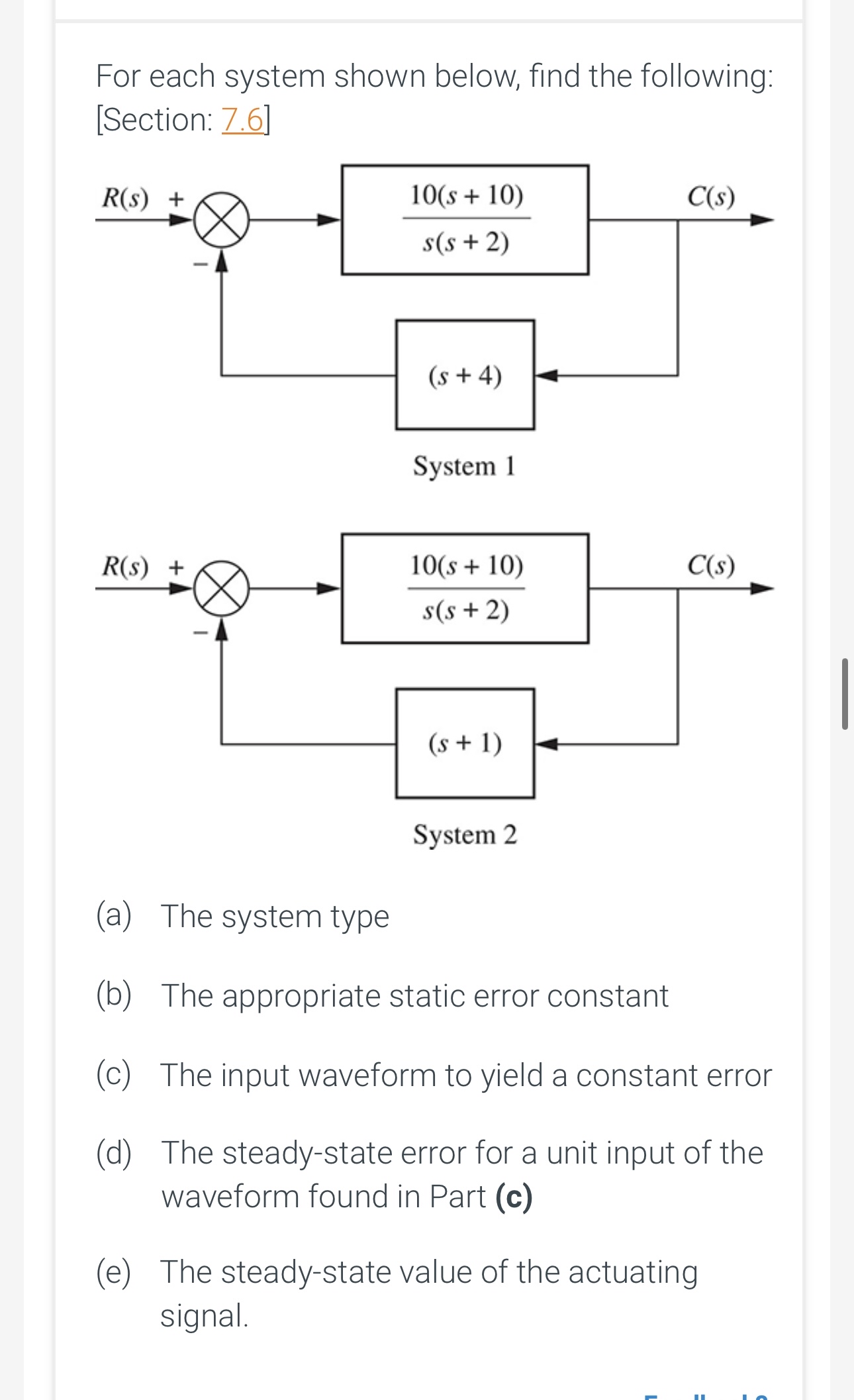

For each system shown below, find the following: [Section: 7.6]
(a) The system type
(b) The appropriate static error constant
(c) The input waveform to yield a constant error
(d) The steady-state error for a unit input of the waveform found in Part (c)
(e) The steady-state value of the actuating signal.
For each system shown below, find the following:
