Question: For the beam cross - sections shown below, calculate the nominal moment carrying capacity ( M n ) and design strength ( M n )

For the beam cross-sections shown below, calculate the nominal moment carrying
capacity (Mn) and design strength (Mn). Does the beam satisfy ACI tension-
controlled failure requirement? Given: fc'=5,000psi,As=4#10 bars, and fy=60,000 psi.

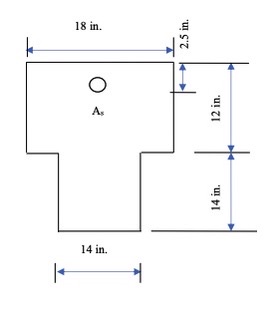

For the beam cross - sections shown below,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
