Question: For the beam shown in Figure No . 2 , use virtual work to determine the slope at the end of the beam ( A

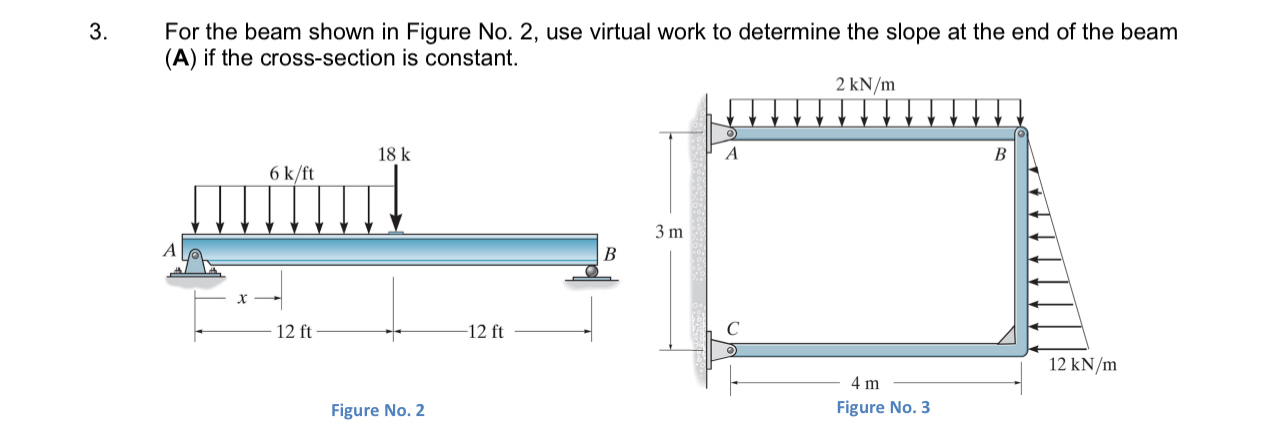

For the beam shown in Figure No.2, use virtual work to determine the slope at the end of the beam (A) if the cross-section is constant.
Figure No.2
Figure No.3
For the beam shown in Figure No . 2 , use virtual

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the slope and displacement at point C of the beam shown below. Use the method of virtual work. Consider EI is constant. Note: use x 1 and x 2 distances as indicated on the beam.
