Question: For the block diagram shown, what is the transfer function of the system; select the response that is most nearly correct: T ( s )

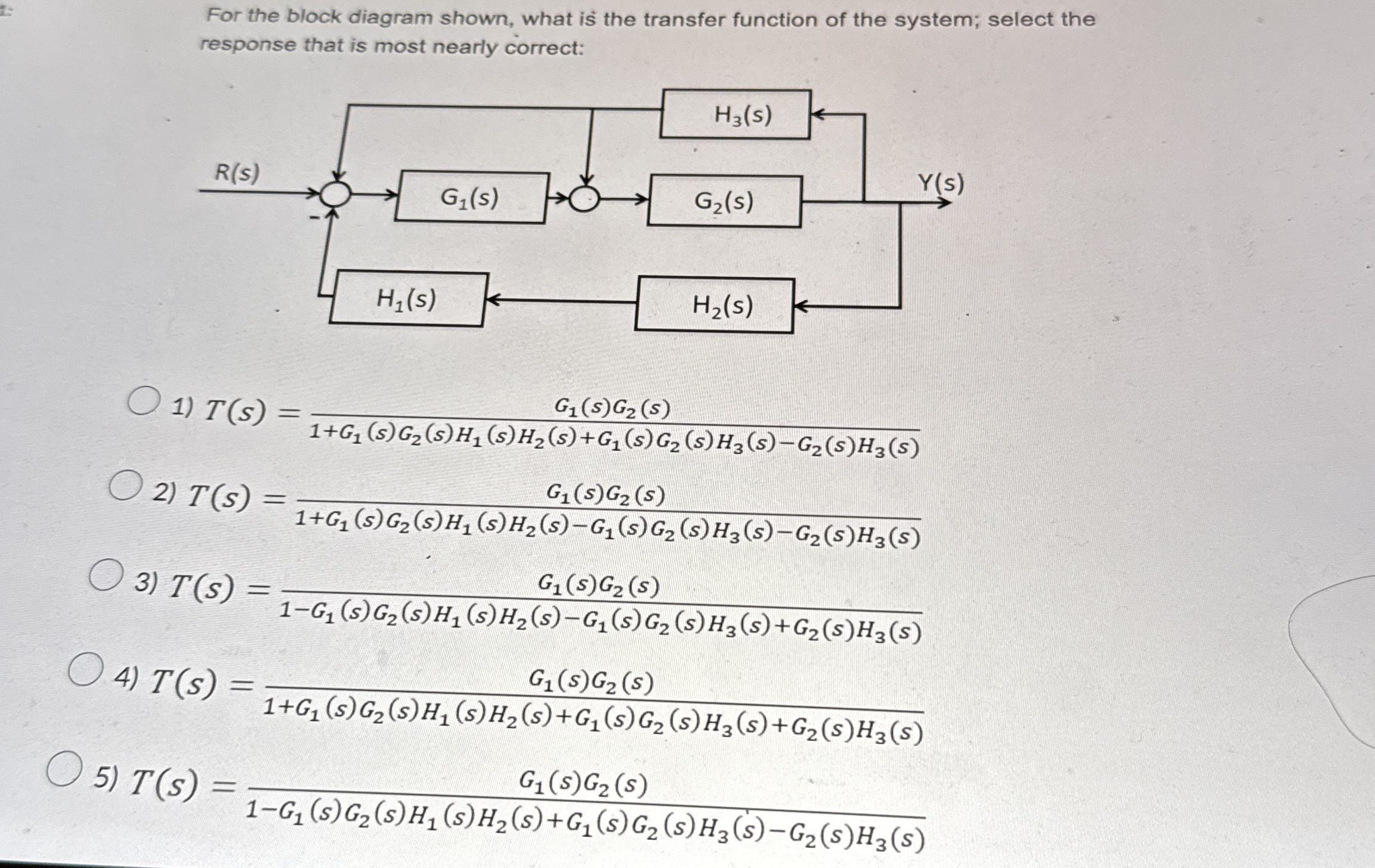

For the block diagram shown, what is the transfer function of the system; select the response that is most nearly correct:
T(s)=G1(s)G2(s)1+G1(s)G2(s)H1(s)H2(s)+G1(s)G2(s)H3(s)-G2(s)H3(s)
T(s)=G1(s)G2(s)1+G1(s)G2(s)H1(s)H2(s)-G1(s)G2(s)H3(s)-G2(s)H3(s)
T(s)=G1(s)G2(s)1-G1(s)G2(s)H1(s)H2(s)-G1(s)G2(s)H3(s)+G2(s)H3(s)
T(s)=G1(s)G2(s)1+G1(s)G2(s)H1(s)H2(s)+G1(s)G2(s)H3(s)+G2(s)H3(s)
T(s)=G1(s)G2(s)1-G1(s)G2(s)H1(s)H2(s)+G1(s)G2(s)H3(s)-G2(s)H3(s)
For the block diagram shown, what is the transfer

Step by Step Solution

There are 3 Steps involved in it
