Question: For the circuit with the two capacitors connected in parallel, as shown below, find the following: . [1 pts] The equivalent capacitance. . [1 pts]

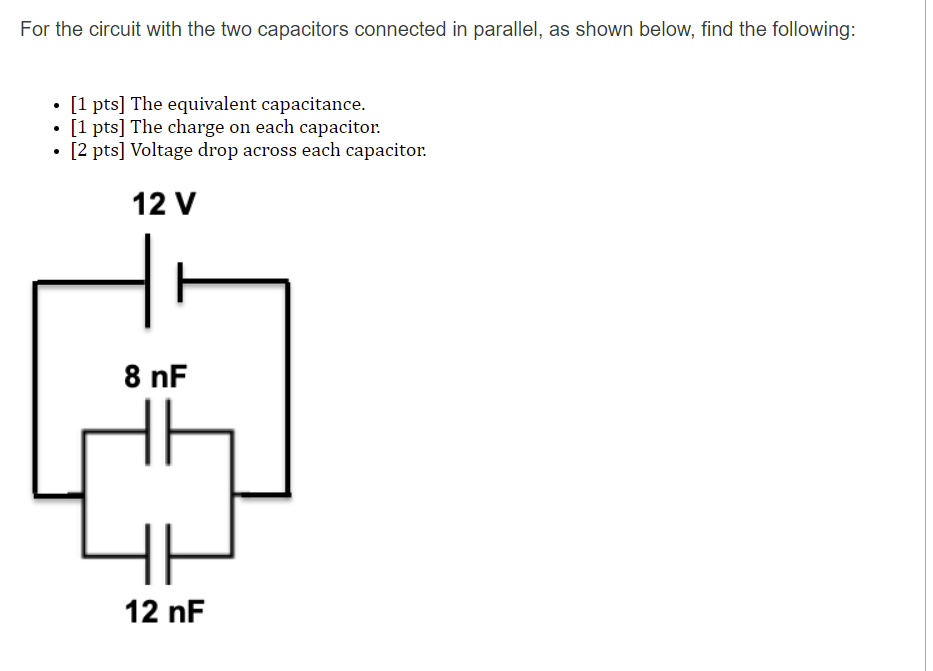

For the circuit with the two capacitors connected in parallel, as shown below, find the following: . [1 pts] The equivalent capacitance. . [1 pts] The charge on each capacitor. . [2 pts] Voltage drop across each capacitor. 12 V 8 nF 12 nF

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
