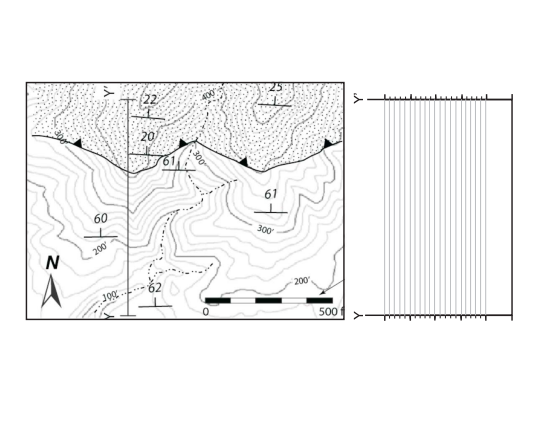

For the first cross section, the units on the map are not labelled. Please label them on the map as A and B representing Formation A and For- mation B. It doesnt really matter which is which, but be consistent with your cross section. Use the provided graph below the map for your cross section. Since the only contact is a fault, it will not show the attitudes of the beds. Draw in a few bedding planes within each unit to show their attitudes. For cross section 2, assume that the N-S contact right next to A does not exist and the other units simply continue their patterns to the West. North is toward the top of the page when oriented so that you can read the unit names. The Tg in the NW corner is in reference to the thin unit just to the SE of it. My attempts to get a line to draw have failed.

For cross section 3, assume that Thd in the West is dipping similarly to Tr to the East. North is toward the top of the page when oriented so that you can read the unit names. Ttd and Tn are actually Tts and Tb, respectively. Again, my edits arent showing up.
