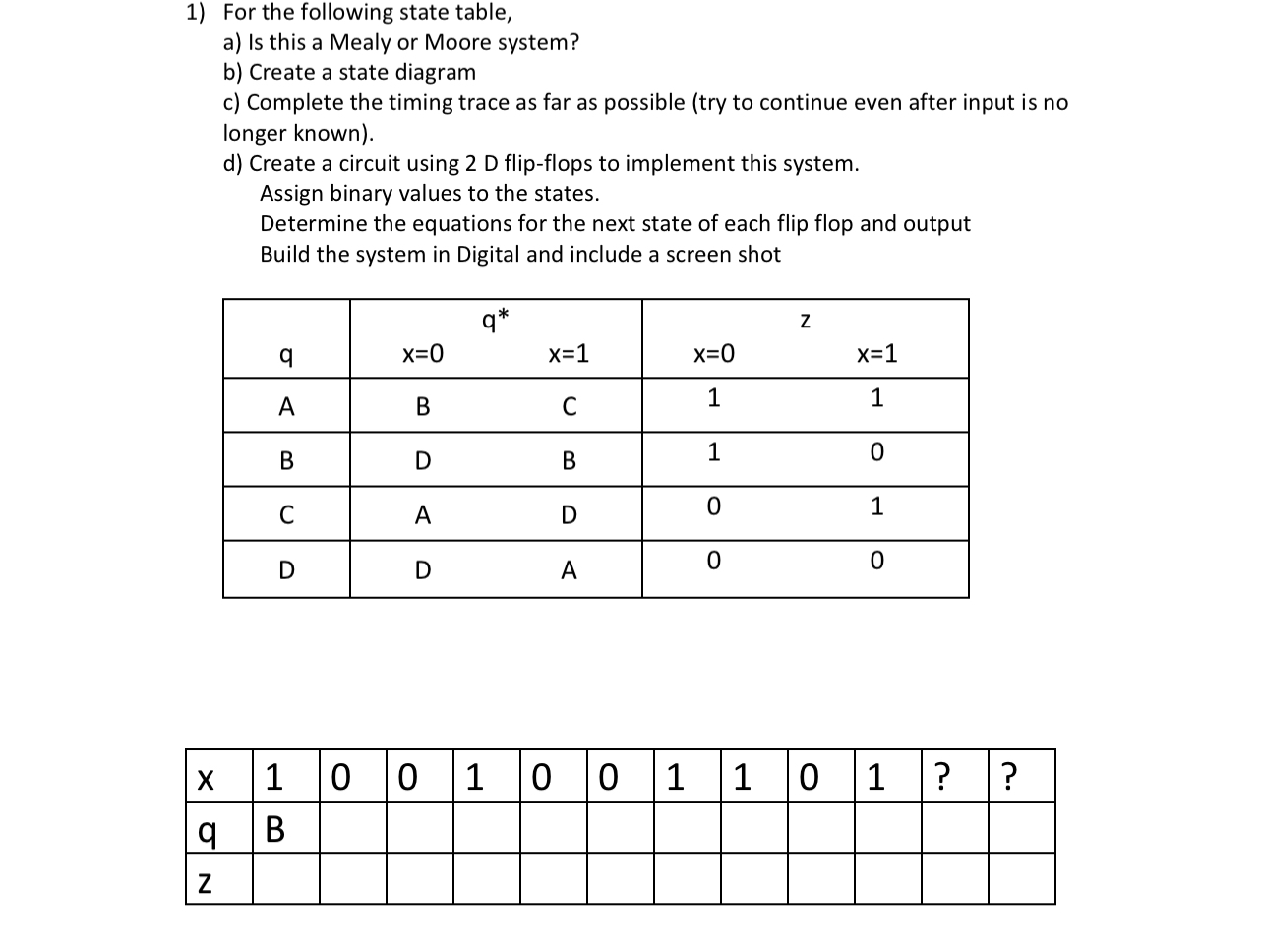

For the following state table,

a$)$ Is this a Mealy or Moore system?

b$)$ Create a state diagram

c$)$ Complete the timing trace as far as possible $($try to continue even after input is no longer known$).$

d$)$ Create a circuit using $2D$ flip$-$flops to implement this system.

Assign binary values to the states.

Determine the equations for the next state of each flip flop and output Build the system in Digital and include a screen shot

$\backslash$table$[[,q^{**},,z$
