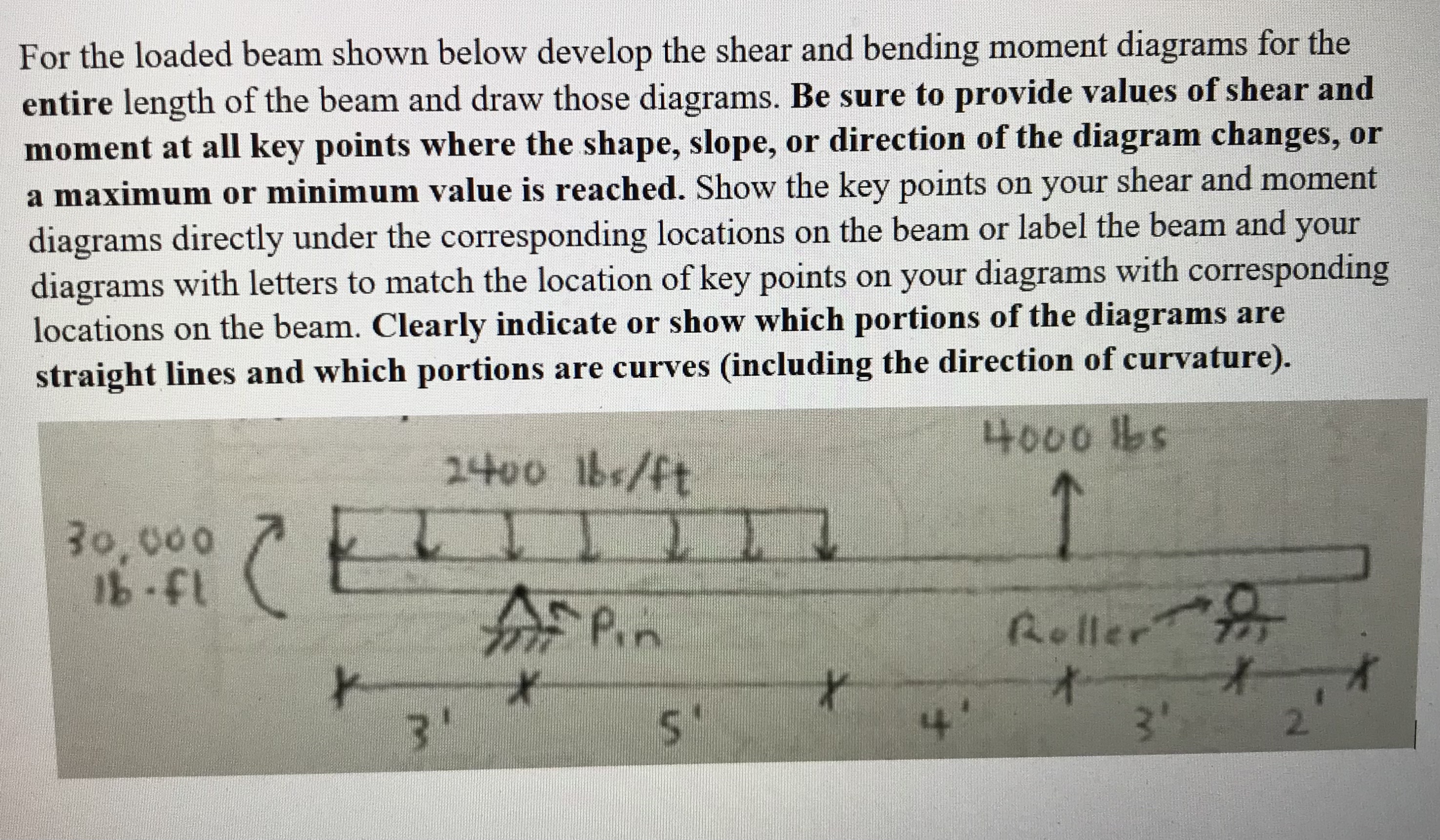

For the loaded beam shown below develop the shear and bending moment diagrams for the

entire length of the beam and draw those diagrams. Be sure to provide values of shear and

moment at all key points where the shape, slope, or direction of the diagram changes, or

a maximum or minimum value is reached. Show the key points on your shear and moment

diagrams directly under the corresponding locations on the beam or label the beam and your

diagrams with letters to match the location of key points on your diagrams with corresponding

locations on the beam. Clearly indicate or show which portions of the diagrams are

straight lines and which portions are curves $($including the direction of curvature$).$
