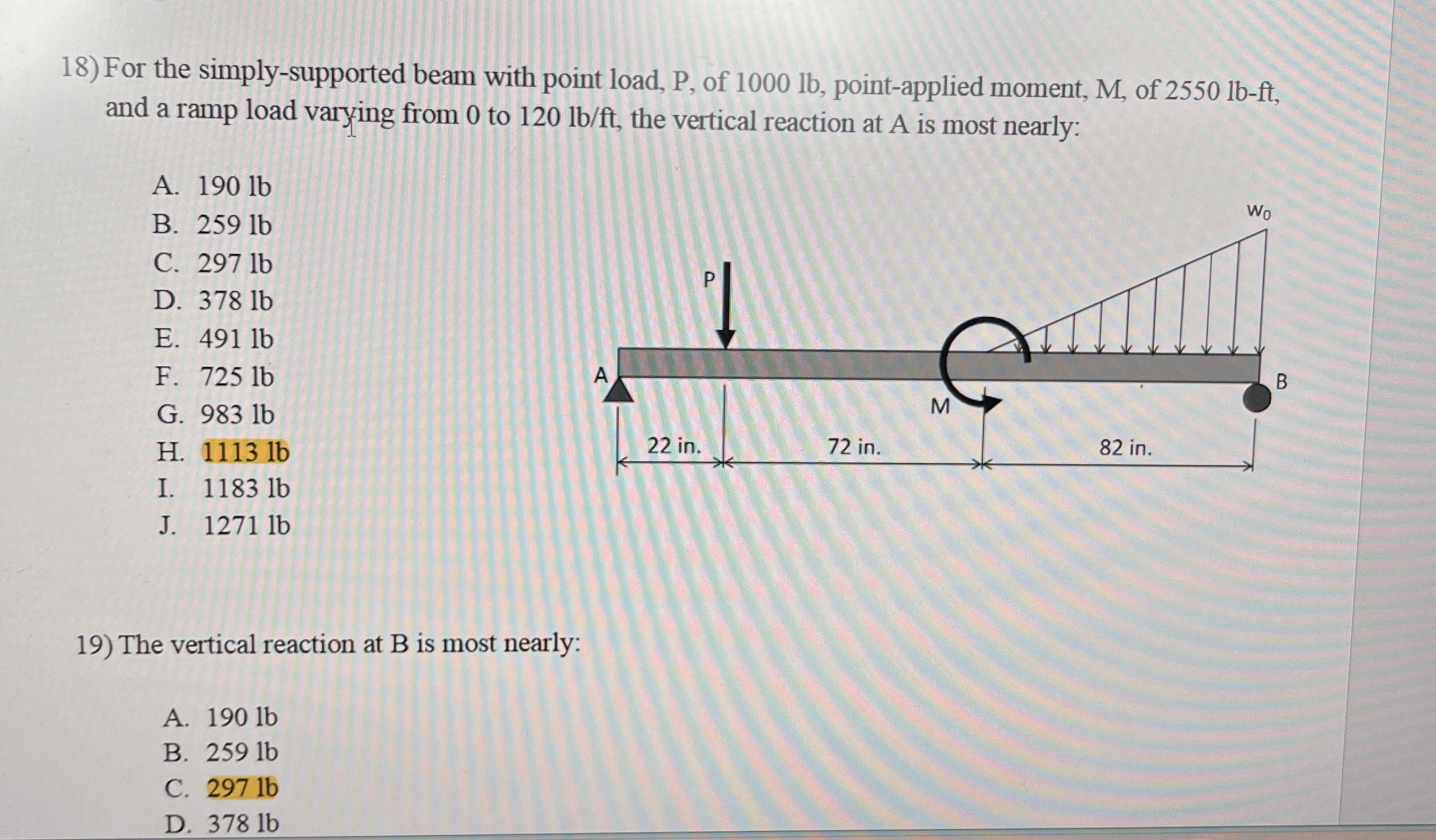

Question: For the simply - supported beam with point load, P , of 1 0 0 0 lb , point - applied moment, M , of

For the simply-supported beam with point load, P , of 1000 lb , point-applied moment, M , of 2550lb-ft, and a ramp load varying from 0 to 120lbft, the vertical reaction at A is most nearly:
A.190 lb
B.259 lb
C.297 lb
D.378 lb
E.491 lb
F.725 lb
G.983 lb
H.1113 lb
I. 1183 lb
J.1271 lb
The vertical reaction at B is most nearly:
A.190 lb
B.259 lb
C.297 lb
D.378 lb
For the simply - supported beam with point load,
