Question: For the single - node pair circuit below i 1 = 1 . 5 A and i 2 = - 6 A . Find (

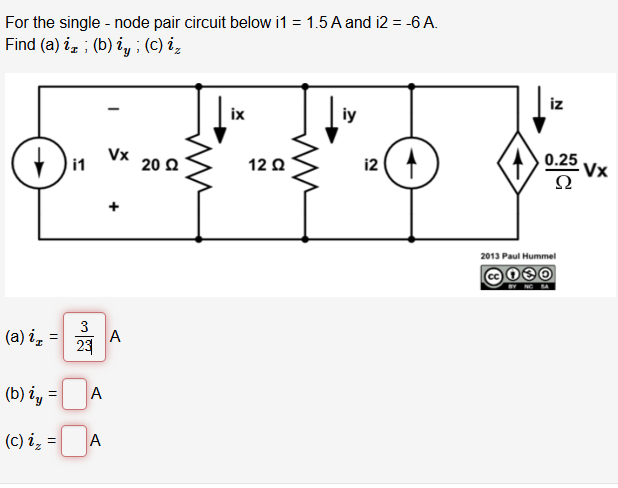

For the single - node pair circuit below i1=1.5A and i2=-6A.
Find (a) i_(x); (b) i_(y); (c) i_(z)
(a) i_(x)=(3)/(23)A
(b) i_(y)=
A
(c) i_(z)=
A
For the single - node pair circuit below i 1 = 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
