Question: For the spring assemblage with arbitrarily numbered nodes shown in Figure 1 , obtain a . The element stiffness matrix for each element b .

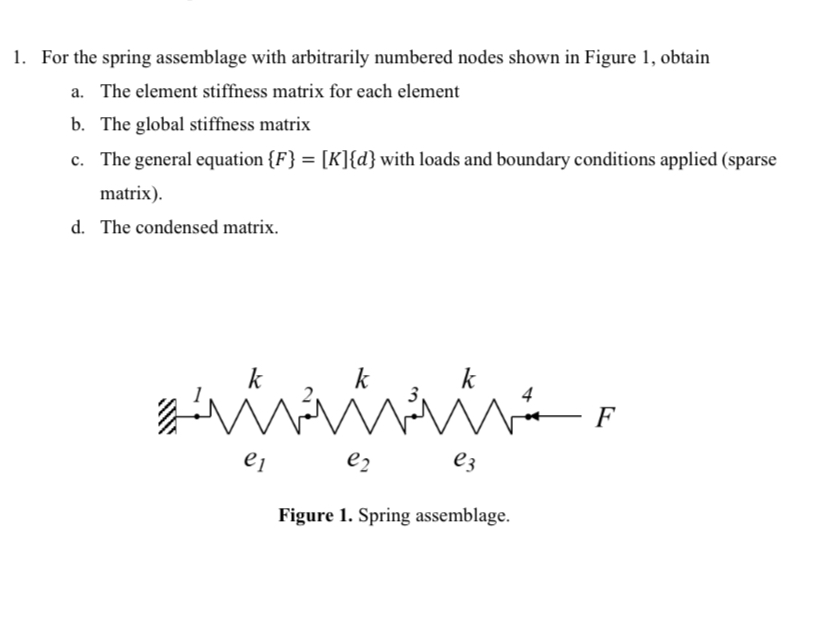

For the spring assemblage with arbitrarily numbered nodes shown in Figure 1, obtain
a. The element stiffness matrix for each element
b. The global stiffness matrix
c. The general equation {F}=[K]{d} with loads and boundary conditions applied (sparse
matrix).
d. The condensed matrix.
