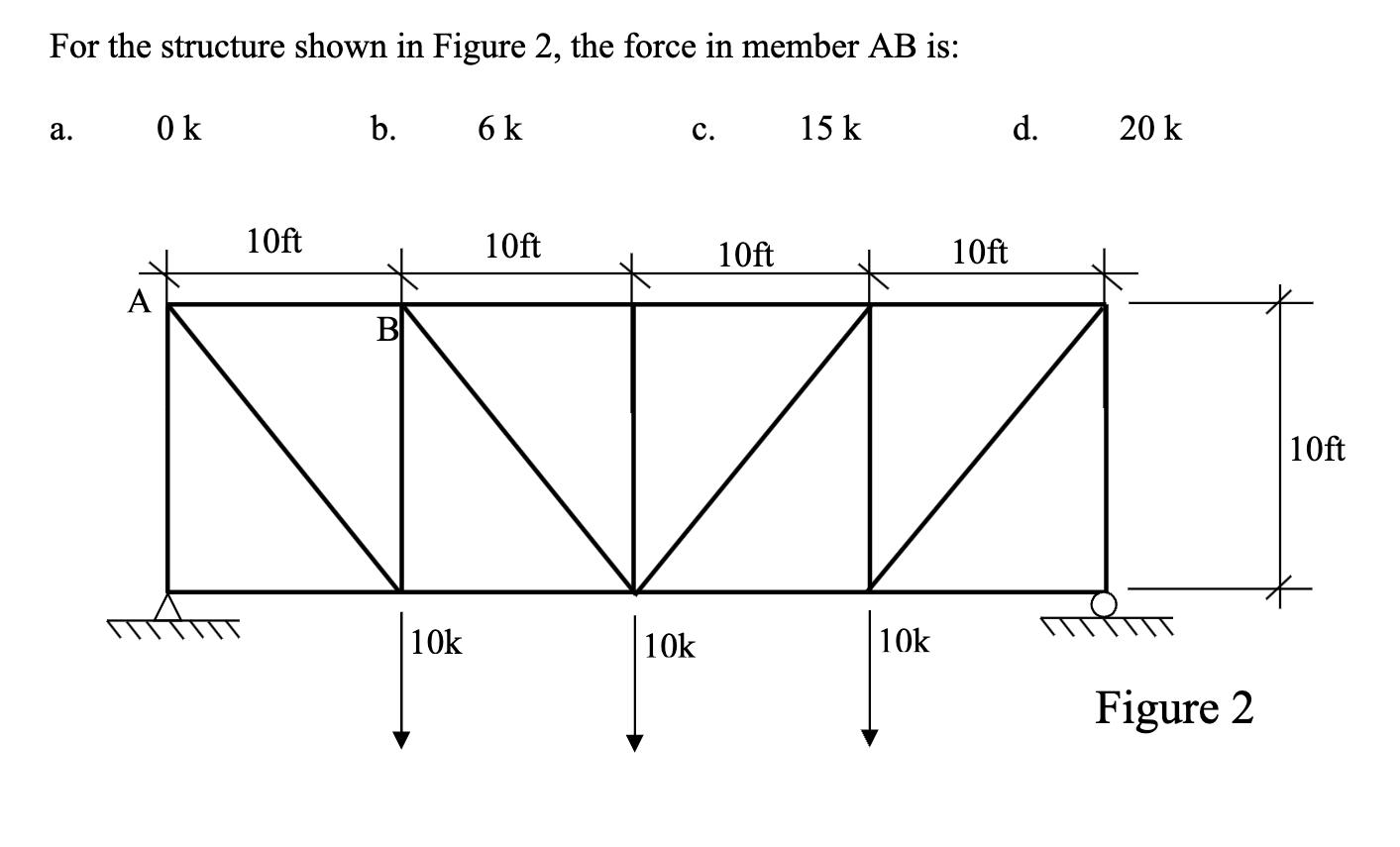

Question: For the sructure shown in Figure 2 , the force in member A B is: a . , 0 k b . , 6 k

For the sructure shown in Figure 2, the force in member AB is:
a.,0k
b.,6k
c.,15k
d.,20k
For the sructure shown in Figure 2 , the force in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
