Question: For the system in Fig. A , a ) Derive the equation of motion for the system. b ) Considering M = 1 k g

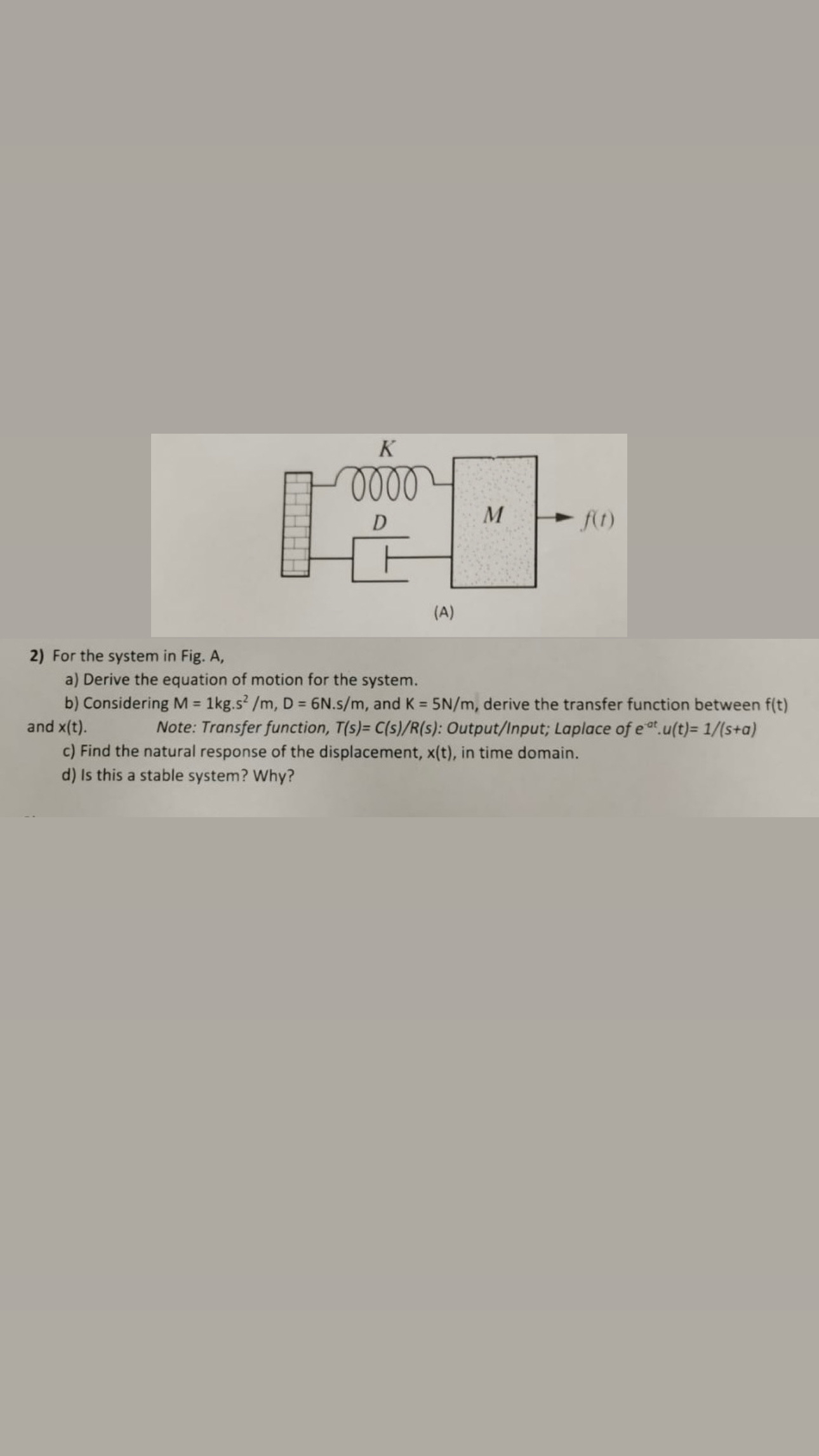

For the system in Fig. A,
a) Derive the equation of motion for the system.
b) Considering M=1kg.s2m,D=6N.sm, and K=5Nm, derive the transfer function between f(t) and x(t). Note: Transfer function, T(s)=CsR(s) : Output/Input; Laplace of e-at.u(t)=1s+a
c) Find the natural response of the displacement, x(t), in time domain.
d) Is this a stable system? Why?
For the system in Fig. A , a ) Derive the

Step by Step Solution

There are 3 Steps involved in it
