Question: For the truss below, determine the maximum compressive axial force in member G H due to a concentrated live load of 3 0 k ,

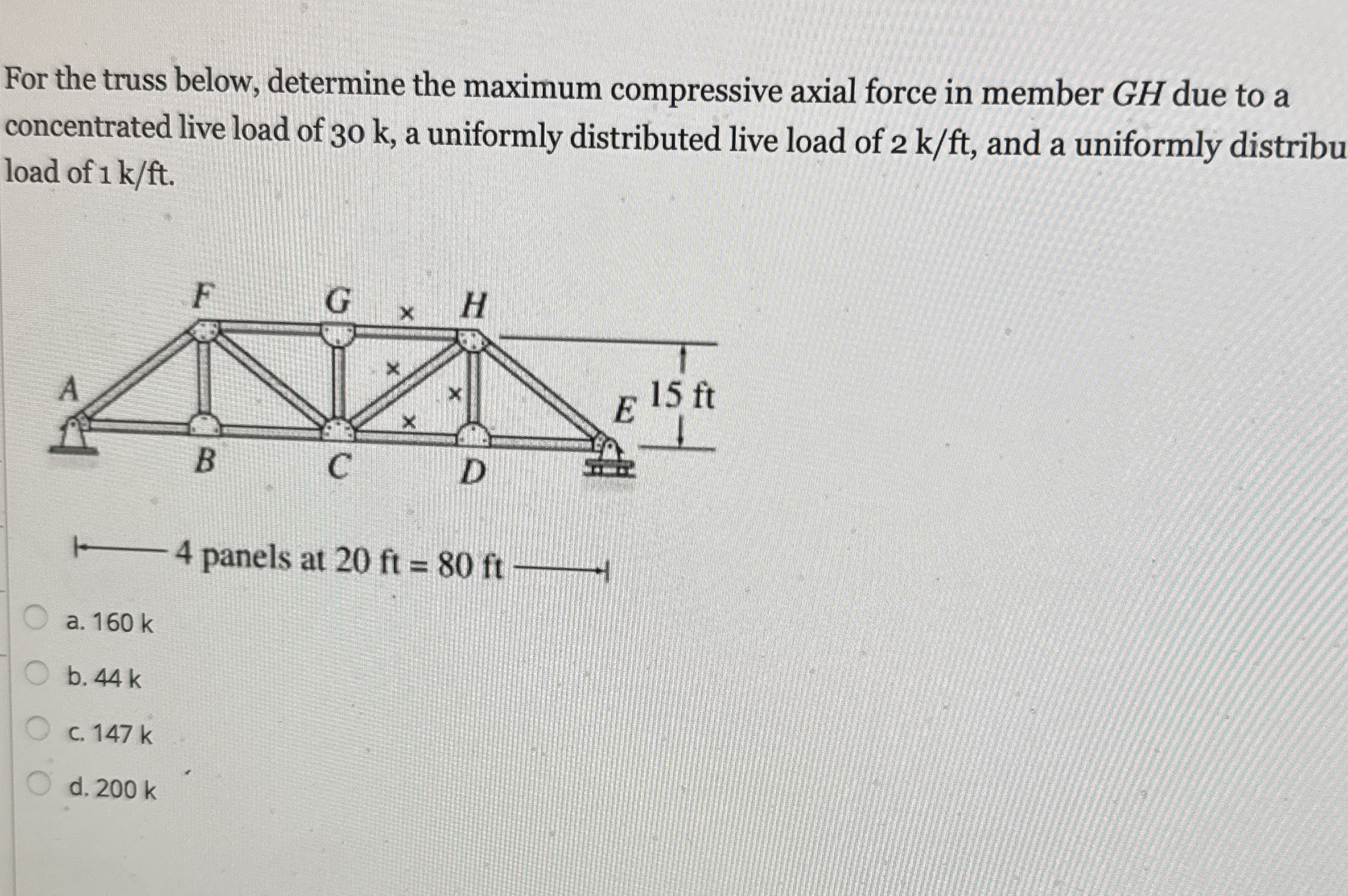

For the truss below, determine the maximum compressive axial force in member GH due to a concentrated live load of 30 k , a uniformly distributed live load of 2kft, and a uniformly distribu load of 1kft.
longrightarrow4 panels at 20ft=80ftlongrightarrow
a.160 k
b.44 k
c.147 k
d.200 k
For the truss below, determine the maximum

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
