Question: For the truss shown: a . Identify the zero - force members. b . Determine the force in member DF . Identify whether the member

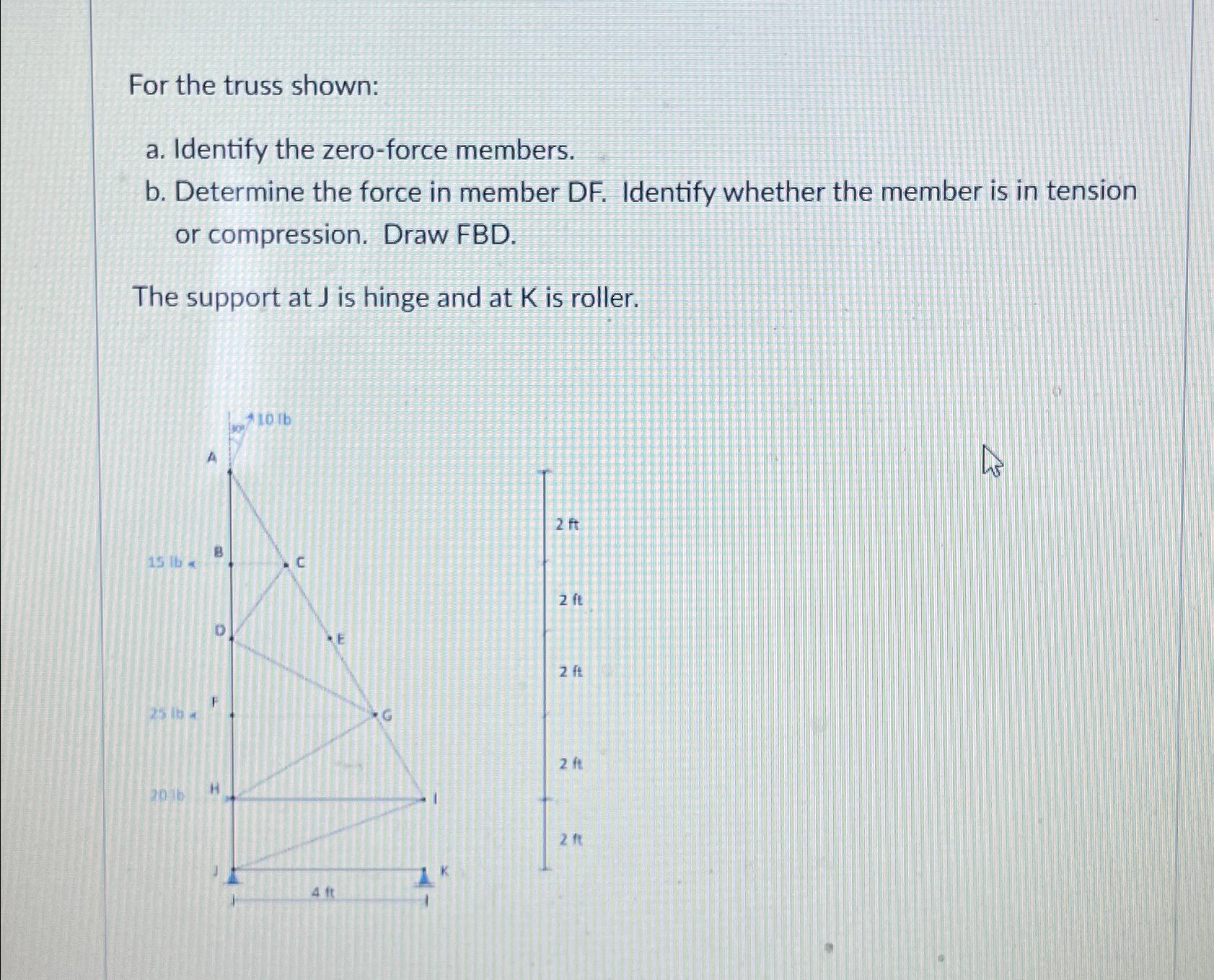

For the truss shown:
a. Identify the zero-force members.
b. Determine the force in member DF. Identify whether the member is in tension or compression. Draw FBD.
The support at J is hinge and at K is roller.
2ft
2ft
2ft
2 ft
2ft
For the truss shown: a. Identify the zero-force members. b. Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
