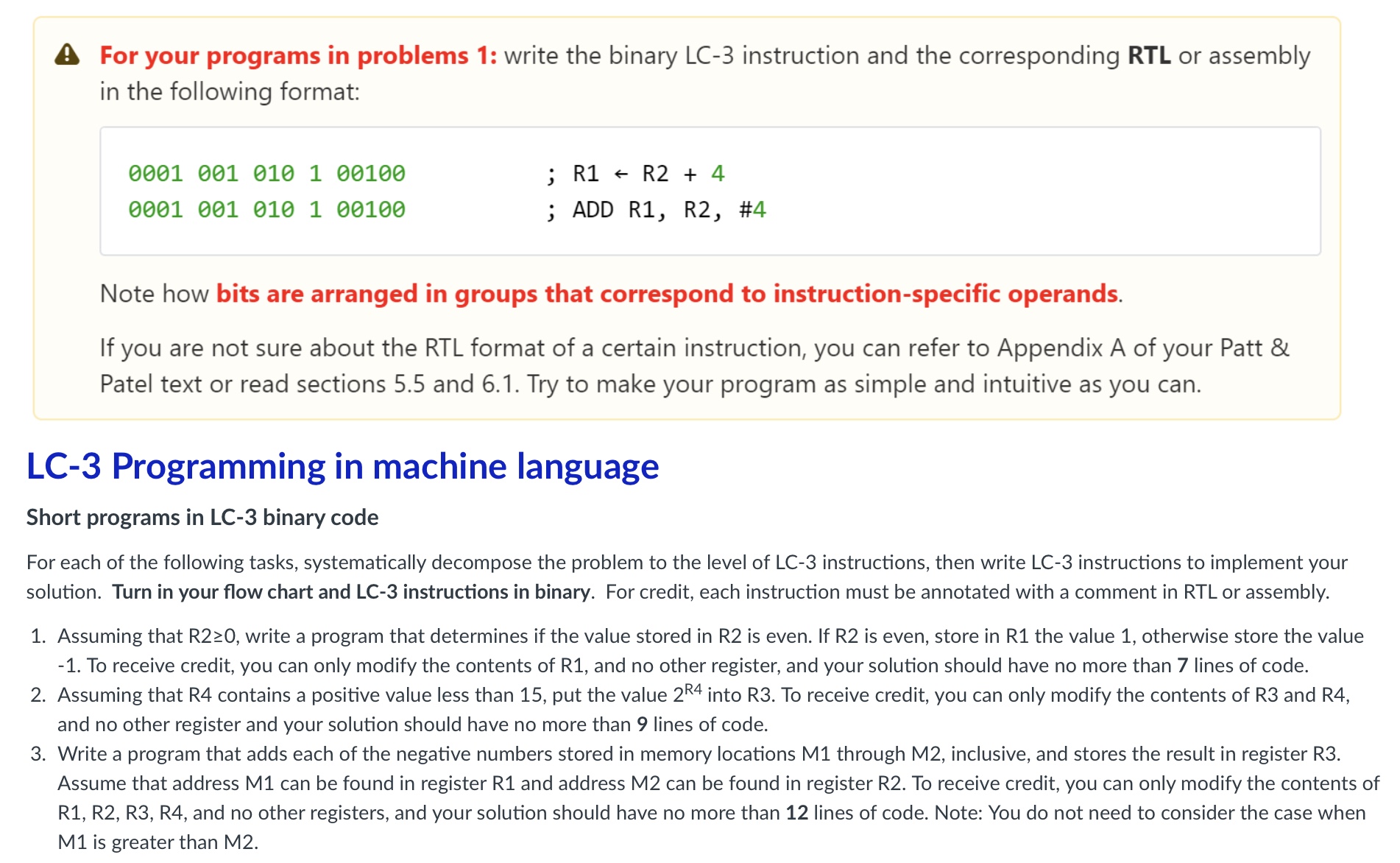

For your programs in problems $1$: write the binary LC$-3$ instruction and the corresponding RTL or assembly

in the following format:

Note how bits are arranged in groups that correspond to instruction$-$specific operands.

If you are not sure about the RTL format of a certain instruction, you can refer to Appendix A of your Patt &

Patel text or read sections $5\mathrm{.}5$ and $6\mathrm{.}1.$ Try to make your program as simple and intuitive as you can.

LC$-3$ Programming in machine language

Short programs in LC$-3$ binary code

For each of the following tasks, systematically decompose the problem to the level of LC$-3$ instructions, then write LC$-3$ instructions to implement your

solution. Turn in your flow chart and LC$-3$ instructions in binary. For credit, each instruction must be annotated with a comment in RTL or assembly.

Assuming that $R20,$ write a program that determines if the value stored in $R2$ is even. If $R2$ is even, store in $R1$ the value $1,$ otherwise store the value

$-1.$ To receive credit, you can only modify the contents of R$1,$ and no other register, and your solution should have no more than $7$ lines of code.

Assuming that R$4$ contains a positive value less than $15,$ put the value $2^{R4}$ into $R3.$ To receive credit, you can only modify the contents of $R3$ and $R4,$

and no other register and your solution should have no more than $9$ lines of code.

Write a program that adds each of the negative numbers stored in memory locations M$1$ through M$2,$ inclusive, and stores the result in register R$3.$

Assume that address $M1$ can be found in register R$1$ and address M$2$ can be found in register R$2.$ To receive credit, you can only modify the contents of

R$1,$ R$2,$ R$3,$ R$4,$ and no other registers, and your solution should have no more than $12$ lines of code. Note: You do not need to consider the case when

M$1$ is greater than M$2.$
