Question: Four identical capacitors are connected with a resistor in two different ways. When they are connected as in part a of the figure, the time

Four identical capacitors are connected with a resistor in two different

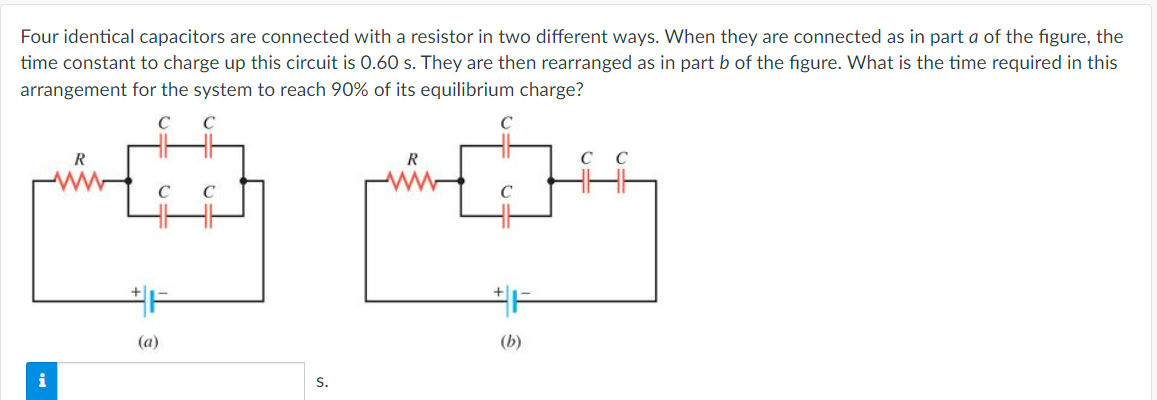

Four identical capacitors are connected with a resistor in two different ways. When they are connected as in part a of the figure, the time constant to charge up this circuit is 0.60 s. They are then rearranged as in part b of the figure. What is the time required in this arrangement for the system to reach 90% of its equilibrium charge? R C + (a) (b) S

Step by Step Solution

There are 3 Steps involved in it
