Question: Four identical capacitors are connected with a resistor in two different ways. When they are connected as in part a of the figure, the time

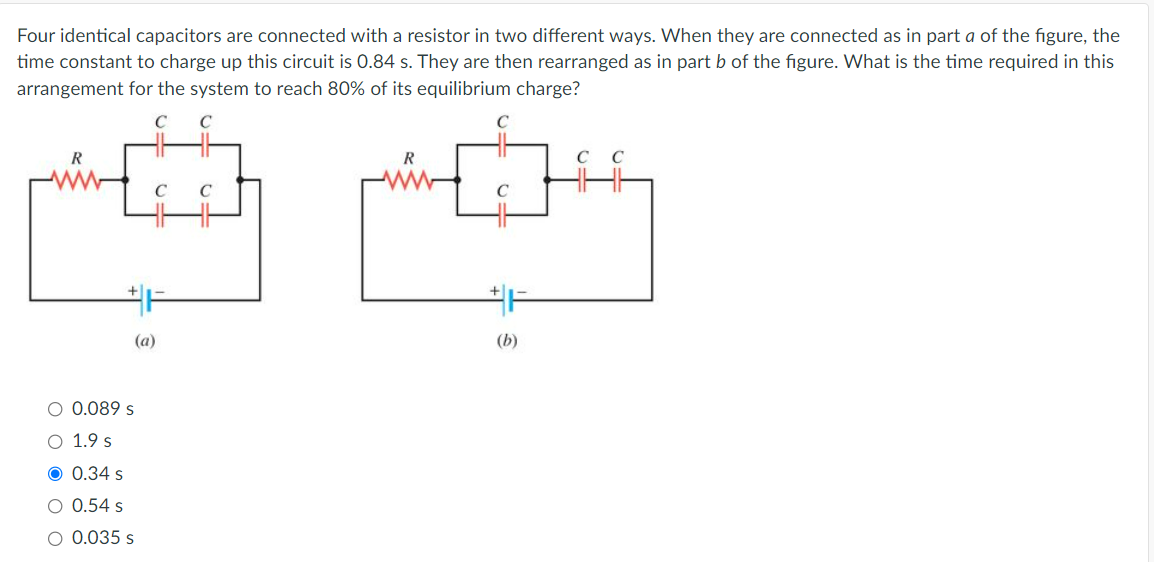

Four identical capacitors are connected with a resistor in two different ways. When they are connected as in part a of the figure, the time constant to charge up this circuit is 0.84 s. They are then rearranged as in part b of the figure. What is the time required in this arrangement for the system to reach 80% of its equilibrium charge? R + (a) (b) O 0.089 s O 1.9 s O 0.34 s O 0.54 s O 0.035 s

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
