from where did they found the numbers? step 1= 60/6

step2= 60/11

step3= 4-0.8

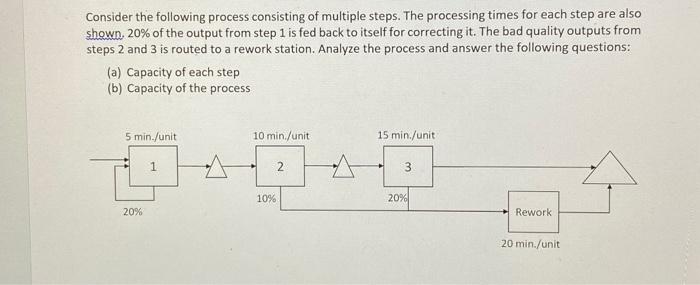

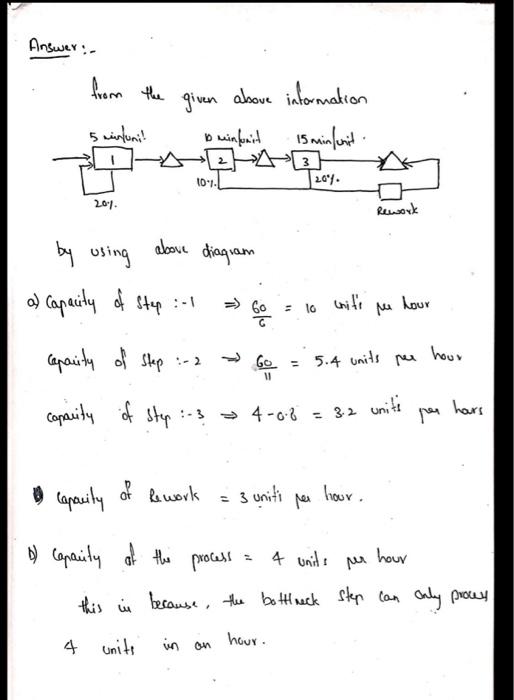

Consider the following process consisting of multiple steps. The processing times for each step are also shown, 20% of the output from step 1 is fed back to itself for correcting it. The bad quality outputs from steps 2 and 3 is routed to a rework station Analyze the process and answer the following questions: (a) Capacity of each step (b) Capacity of the process 5 min./unit 10 min./unit 15 min./unit 2 3 10% 20% 20% Rework 20 min./unit Answer: :. from the given above information buinfonit 15 min/unit 5 minluni! 10-1. 2.04. 201 Rework above diagram by using a) Capacity of Step :- >> lo 11 hour Me Capacity of Step :-2 7 Go 11 = 5.4 units per hour capacity of step :-3 of step :-3 4-0.8 = 3.2 uniti per hours & capacity of the work = 3 uniti hour. b) lepauty of the process = 4 units per hour this in because the bottlneck Step can only proces 4 units hour. in on
