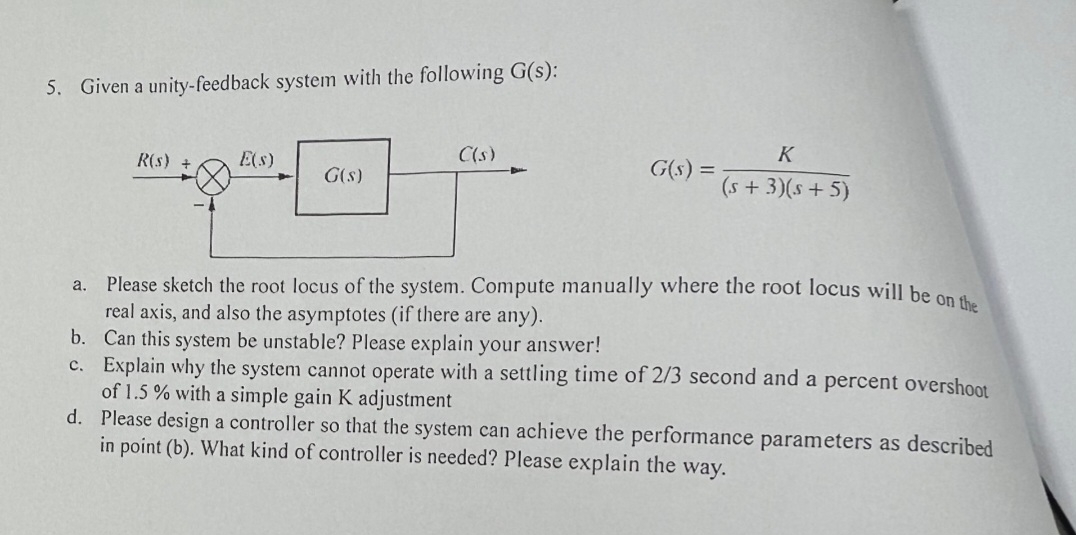

Question: Given a unity - feedback system with the following G ( s ) : G ( s ) = K ( s + 3 )

Given a unity-feedback system with the following G(s) :
G(s)=K(s+3)(s+5)
a. Please sketch the root locus of the system. Compute manually where the root locus will be on the real axis, and also the asymptotes (if there are any).
b. Can this system be unstable? Please explain your answer!
c. Explain why the system cannot operate with a settling time of 23 second and a percent overshoot of 1.5% with a simple gain K adjustment
d. Please design a controller so that the system can achieve the performance parameters as described in point (b). What kind of controller is needed? Please explain the way.
Given a unity - feedback system with the
