Question: Given: Column ABC has a uniform rectangular cross section with b = 1 2 0 m m and d = 2 2 0 m m

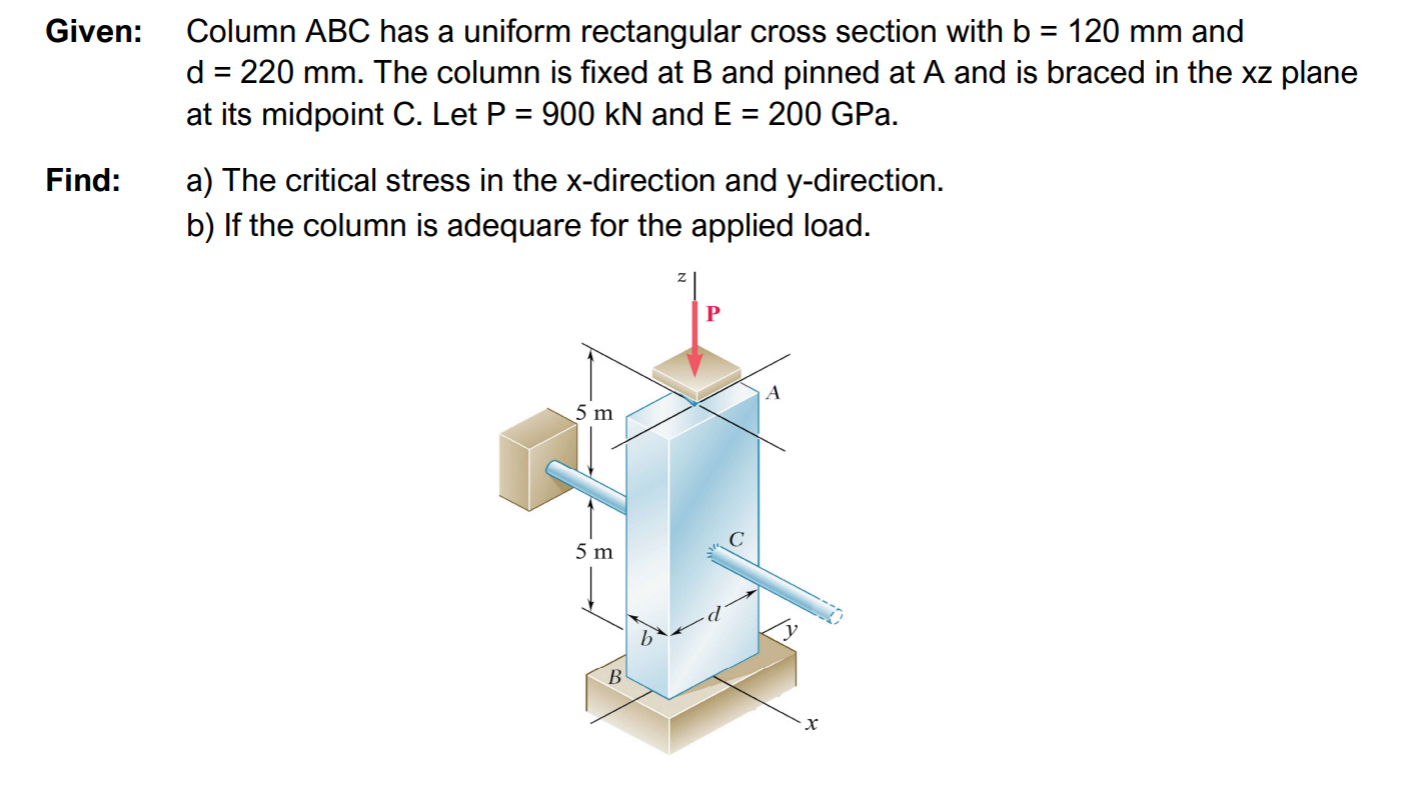

Given: Column ABC has a uniform rectangular cross section with b=120mm and d=220mm. The column is fixed at B and pinned at A and is braced in the xz plane at its midpoint C. Let P=900kN and E=200GPa.
Find: , a) The critical stress in the x-direction and y-direction.
b) If the column is adequare for the applied load.
Given: Column ABC has a uniform rectangular cross

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
