Question: Given: Lead (Pb) - Tin (Sn) Phase Diagram Composition (at% Sn) 0 20 40 60 80 100 1 327C * (A) 1 600 300 Liquid

Given: Lead (Pb) - Tin (Sn) Phase Diagram Composition (at% Sn) 0 20 40 60 80 100 1 327C * (A) 1 600

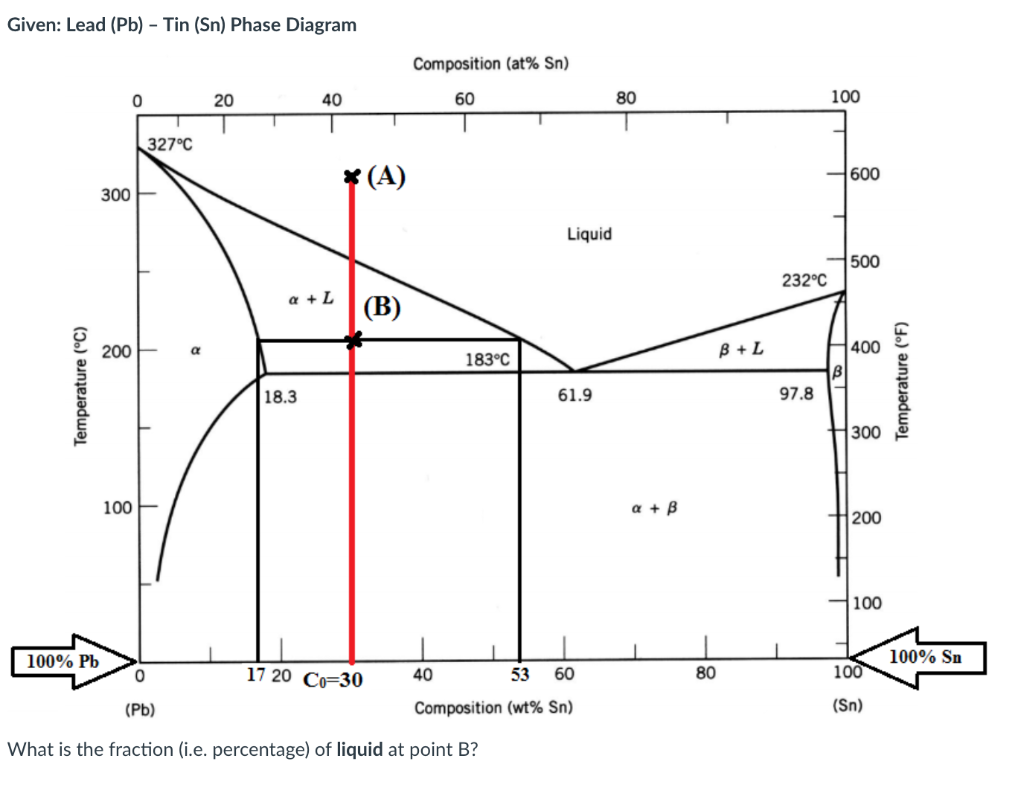

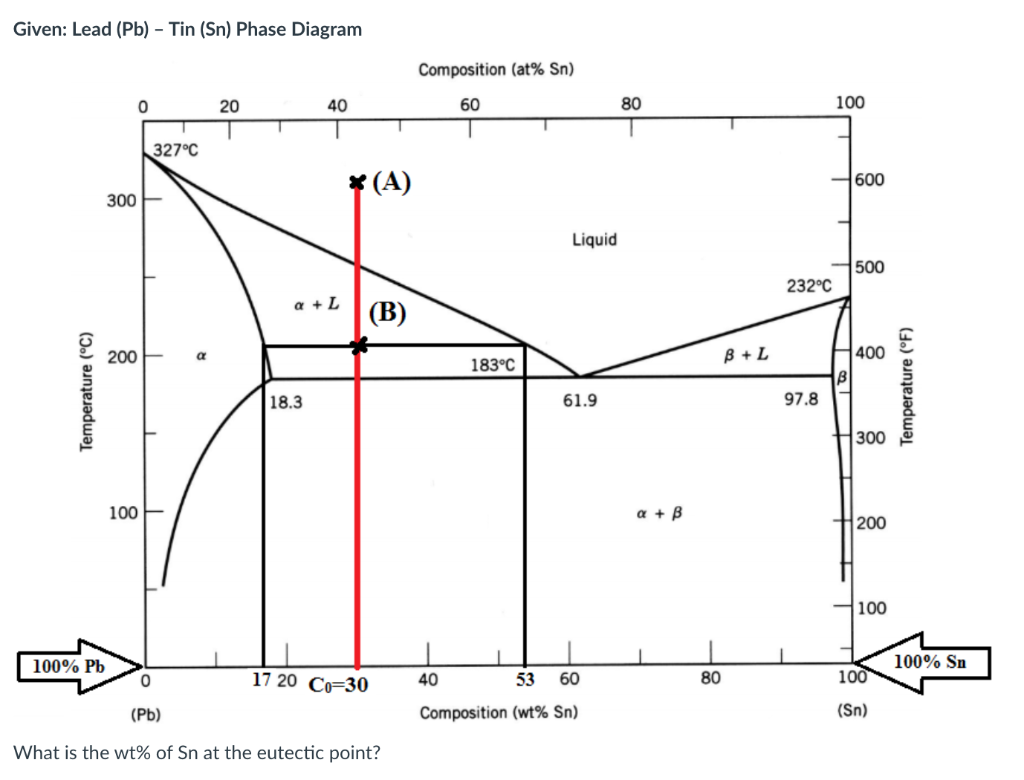

Given: Lead (Pb) - Tin (Sn) Phase Diagram Composition (at% Sn) 0 20 40 60 80 100 1 327C * (A) 1 600 300 Liquid 500 232C Q + L (B) 200 B + L 183C 400 B Temperature (C) Temperature (F) 18.3 61.9 97.8 300 100 a + B 200 100 100% Pb 100% Sn 0 17 20 Co=30 40 53 60 80 100 (Pb) Composition (wt% Sn) (Sn) What is the fraction (i.e. percentage) of liquid at point B? Given: Lead (Pb) - Tin (Sn) Phase Diagram Composition (at% Sn) 0 20 40 60 80 100 327C (A) 600 300 Liquid 500 232C a + L (B) 200 a 183C B + L 400 B Temperature (C) Temperature (F) 18.3 61.9 97.8 300 100 a + B 200 100 100% Pb 100% Sn 0 17 20 Co=30 40 53 60 80 100 (Pb) Composition (wt% Sn) (Sn) What is the wt% of Sn at the eutectic point

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Given: Lead (Pb) - Tin (Sn) Phase Diagram Composition (at% Sn) 0 20 40 60 80 100 327C X (A) 600 300 Liquid 500 232C a + L (B) 200 B + L I 183C 400 B Temperature (C) Temperature (F) 18.3 61.9 97.8 300...

Given: Lead (Pb) - Tin (Sn) Phase Diagram Composition (at% Sn) 0 20 40 60 80 100 327C * (A) 600 300 Liquid 500 232C a + L (B) 200 a B + L 400 183C Temperature (C) Temperature (F) 18.3 61.9 97.8 300...

Given: Lead (Pb) - Tin (Sn) Phase Diagram Composition (at% Sn) 0 20 40 60 80 100 1 T 327C * (A) 600 300 Liquid 500 232C a + L (B) 200 a B + L 400 183C B Temperature (C) Temperature (F) 18.3 61.9 97.8...

A 1.5-kg specimen of a 90 wt% Pb???10 wt% Sn alloy is heated to 250oC (480oF); at this temperature it is entirely an a-phase solid solution (Figure). The alloy is to be melted to the extent that 50%...

For the lead-tin system: (a) Determine the proportions of liquid and solid phases for the 40% Sn composition of the lead-tin system at temperatures 2500, 2000, 1500. (15 pts) (b) Draw the development...

For a lead-tin alloy of composition 40 wt% Sn-60 wt% Pb with a total mass of 2.8 kg at 180C (355F): (a) Determine the mass of the a and phases. (b) What is the primary phase present for this alloy?...

0 20 40 60 80 100 327c 300 600 Liquid 500 a + L 232 C 200 183C B+L Temperature (C) 400 B 18.3 61.9 Temperature (F) 97.8 300 100 a + B to 200 100 o 0 20 40 60 80 100 (Pb) Composition (wt% Sn) (Sn) 5....

(b) Figure 3 shows the lead (Pb) tin (Sn) phase diagram used as a solder material, i. il. Derive the cutectic reaction for Pb-So alloy. (Note: Your answer must include the composition and temperature...

Question 1 Composition (at% Sn) 20 40 60 80 100 327 C 300 600 Liquid 500 232 C 200 183.C B+L 400 Temperature ("C) 18.3 61.9 97.8 300 100 200 100 20 40 60 80 100 (Pb) Composition (wt% Sn) (Sn)

Below is a Sn-Pb Phase Diagram: Composition (at % Sn) 60 20 40 80 100 327c T 600 300 Liquid Solidus 2 -Liquidus 500 Solidus + L 232C 200 400 183C BUL Temperature (C) Temperature (F) 19.2 61.9 97.5 |...
