Question: Given: The house framing section shown in Figure Find: a ) Roof dead load D in psf on a horizontal plane b ) Basic (

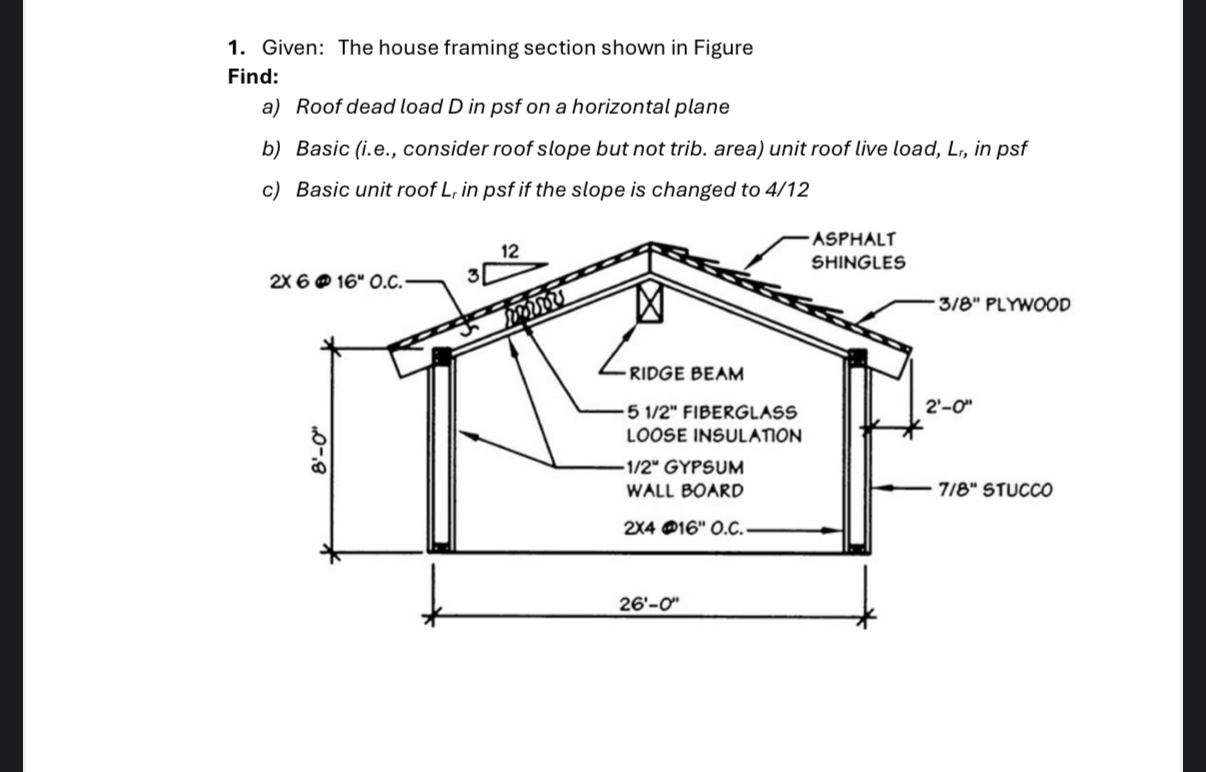

Given: The house framing section shown in Figure Find:
a) Roof dead load D in psf on a horizontal plane
b) Basic (i.e., consider roof slope but not trib. area) unit roof live load, Lr, in psf
c) Basic unit roof Lr in psf if the slope is changed to 4/12
Given: The house framing section shown in Figure

Step by Step Solution

There are 3 Steps involved in it
