Question: STATICS [ 9 pts ] - Circle the cases that are solvable using what we know in Statics ( hence circle those which are fixed

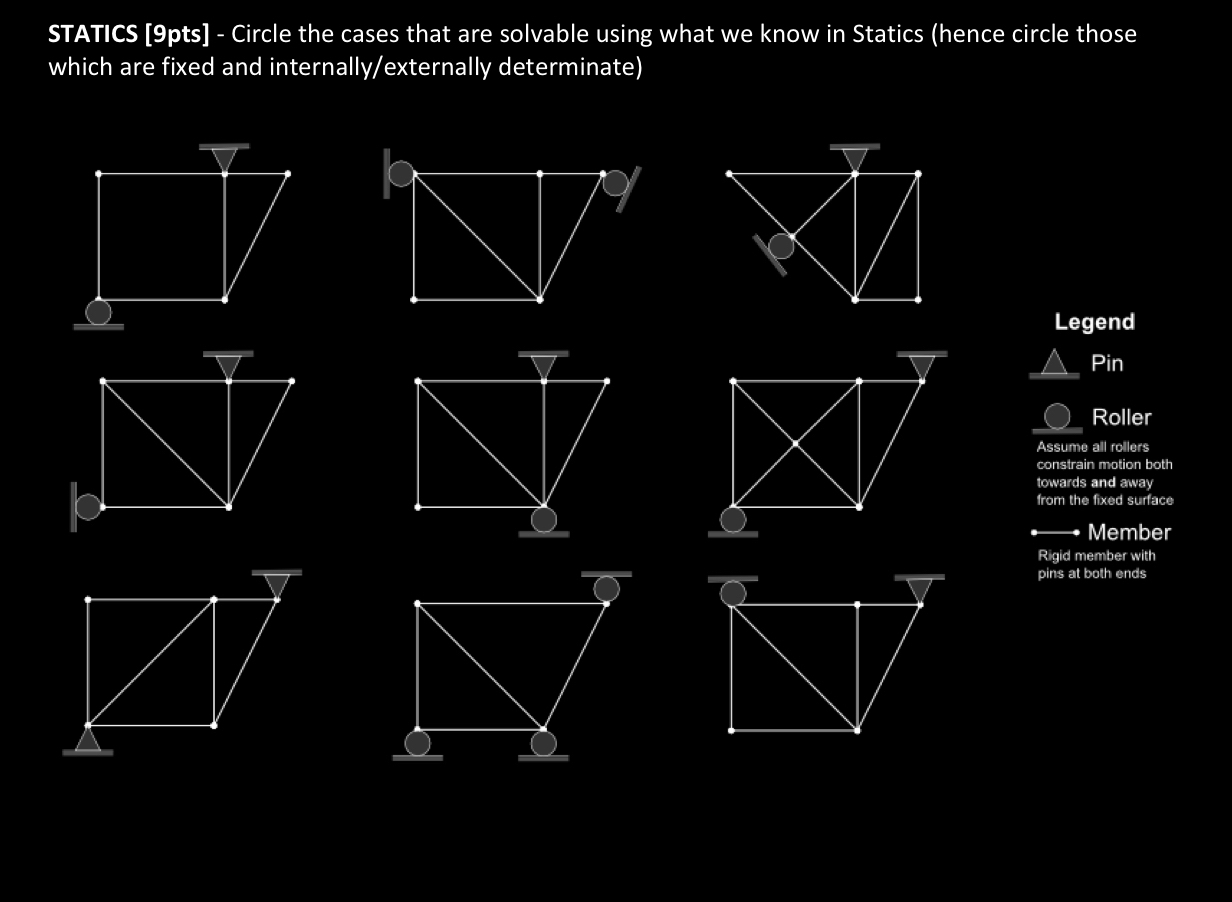

STATICS [9pts]- Circle the cases that are solvable using what we know in Statics (hence circle those which are fixed and internally/externally determinate)
Legend
Pin
Roller
Assume all rollers constrain motion both
towards and away towards and away
from the fixed surface
Rigid member with pins at both ends
STATICS [ 9 pts ] - Circle the cases that are

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Circle the cases that are solvable using what we know in Statics ( hence circle those which are externally stable and determinate ) and provide a brief explanation in the table below.
