Given the information provided in discussion problem 3, which product has the higher reliability and why?

Group of answer choices

Product A has the higher reliability due to a lower MTBF.

Product A has the higher reliability due to a higher MTBF.

Product B has the higher reliability due to a lower MTBF.

Product B has the higher reliability due to a higher MTBF.

Flag question: Question 2

Given the information provided in discussion problem 3, which product has the best availability and why?

Group of answer choices

Product A since it has the higher availability.

Product A since it has the lower availability.

Product B since it has the higher availability.

Product B since it has the lower availability.

Flag question: Question 3

Using the data provided in the RBA diagram, what is the overall reliability of the system?

Group of answer choices

Less than 50%

Between 50% and 70%

Between 70% and 90%

Over 90%

Flag question: Question 4

After completing the "series analysis" of the system, you have been asked which component is a candidate for an improvement initiative?

Group of answer choices

R1

R2.1, R2.2, R2.3

R3, R4

R5.1, R5.2, R5.3 & R5.4

R6

No action is needed since all components exceed 90% reliability.

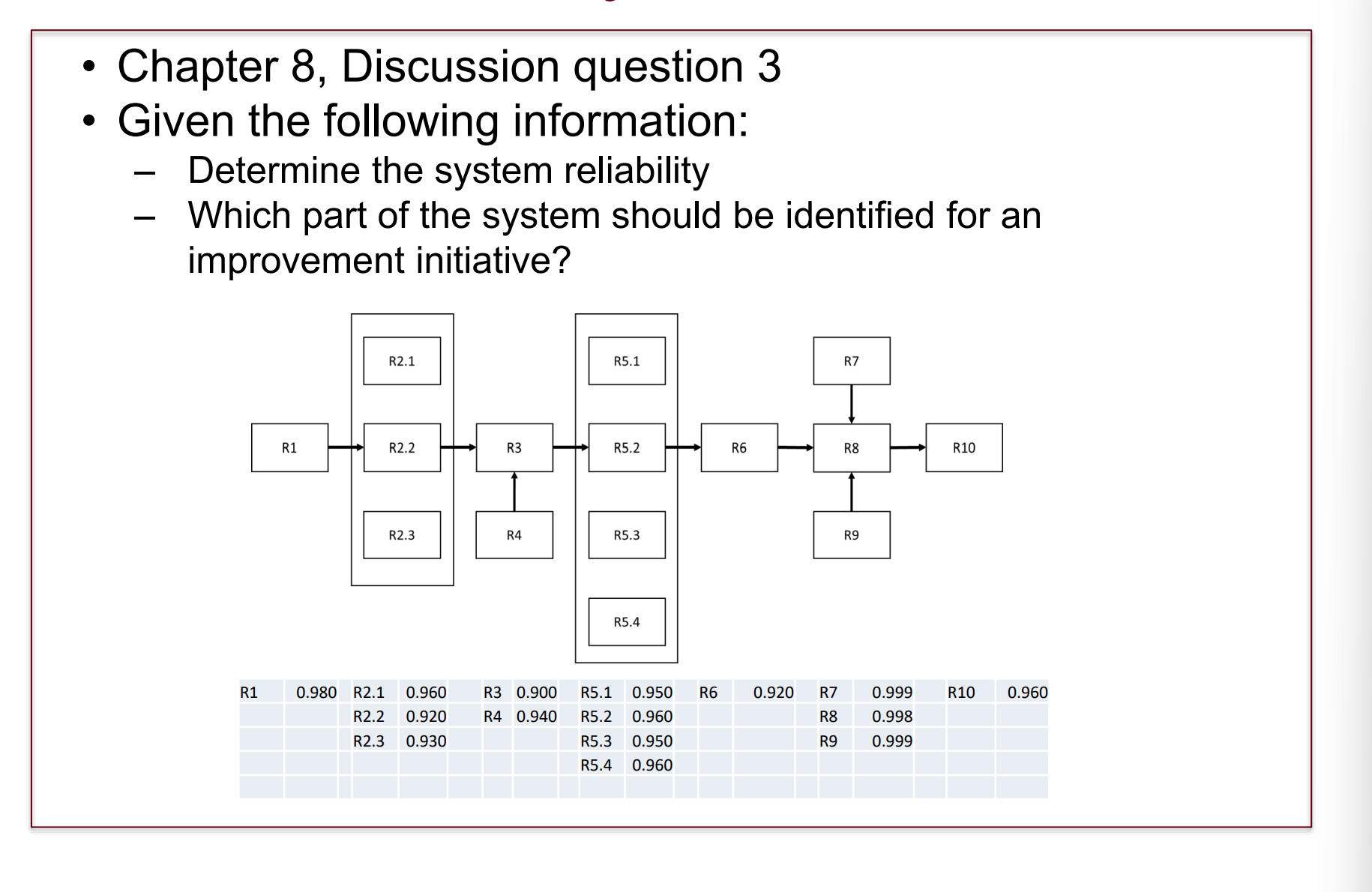

- Chapter 8, Discussion question 3 - Given the following information: - Determine the system reliability - Which part of the system should be identified for an improvement initiative
