Question: Grooves 1 0 mm deep and 8 mm width ( 2 r ) are to be cut in a steel bur which is 6 0

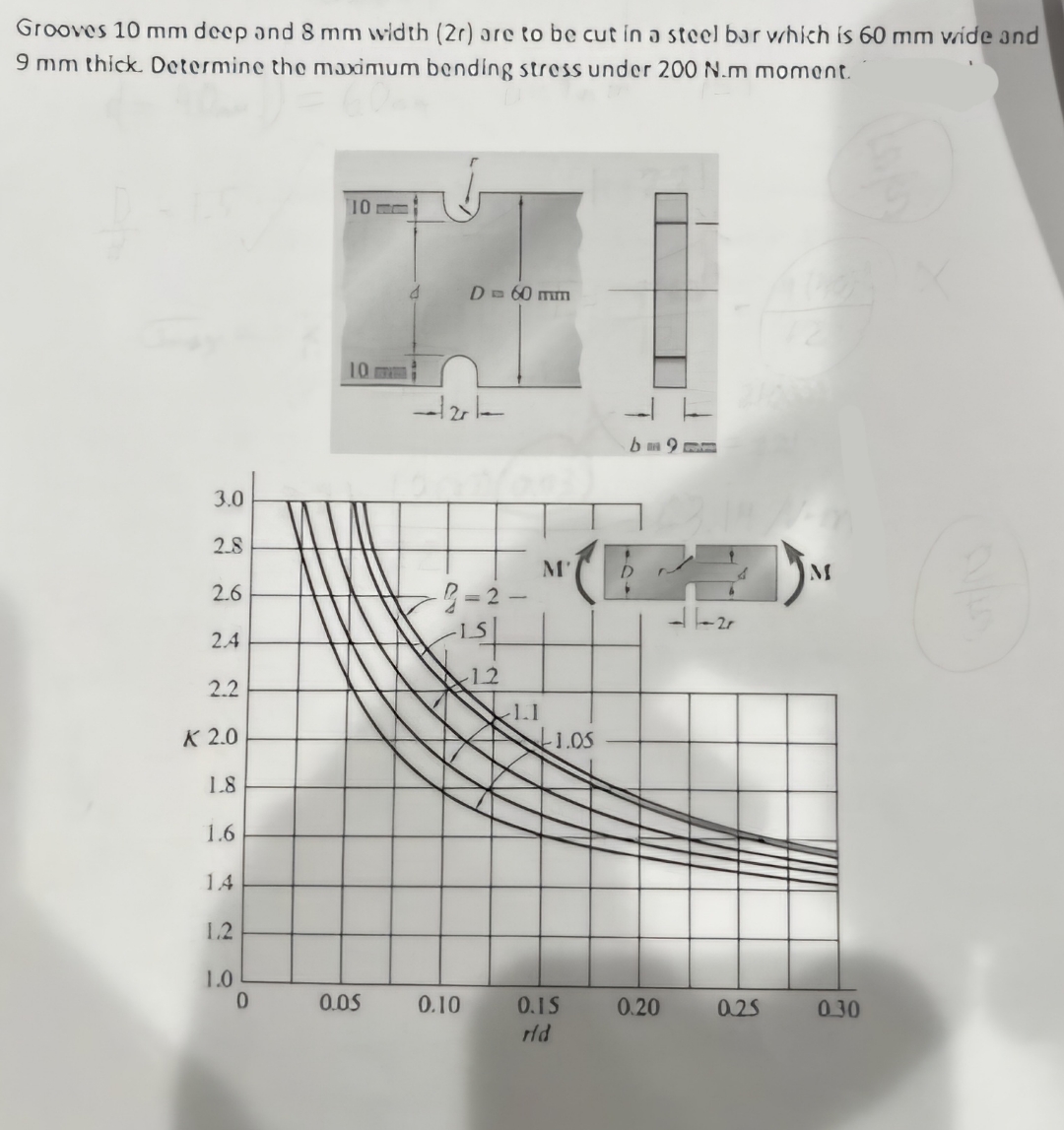

Grooves 10 mm deep and 8 mm width (2r) are to be cut in a steel bur which is 60 mm vide and
9 mm thick. Determine the maximum bending stress under 200N.m moment.
Grooves 1 0 mm deep and 8 mm width ( 2 r ) are to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
