Question: H 4 . An A C phosor circuit is shown in Fig. A . All impedances are in Ohins. Compule ( i ) V 1

H4. An AC phosor circuit is shown in Fig. A. All impedances are in Ohins. Compule(i)V1,V, and I, (ii) Complex pover s=+ja supplled by the source 3,j4

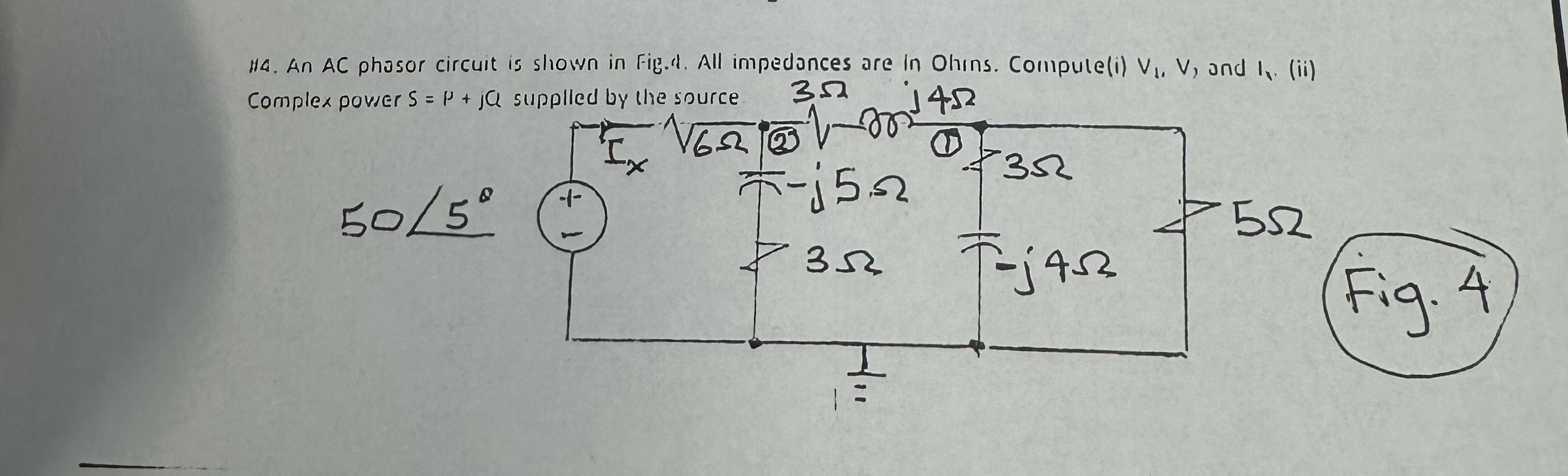

H 4 . An A C phosor circuit is shown in Fig. A .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
