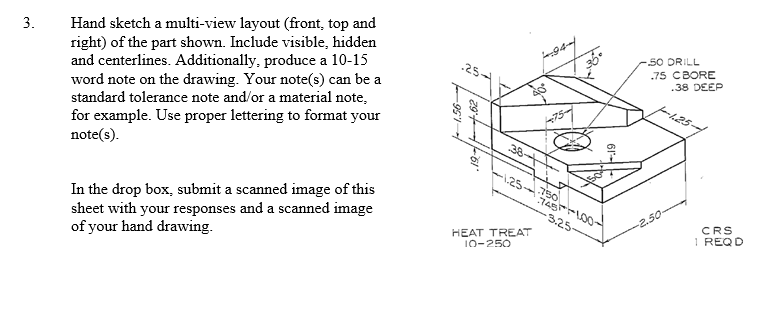

Hand sketch a multi$-$view layout $($front$,$ top and

right$)$ of the part shown. Include visible, hidden

and centerlines. Additionally, produce a $10-15$

word note on the drawing. Your note$($s$)$ can be a

standard tolerance note and$/$or a material note,

for example. Use proper lettering to format your

note$($s$).$

In the drop box, submit a scanned image of this

sheet with your responses and a scanned image

of your hand drawing.
