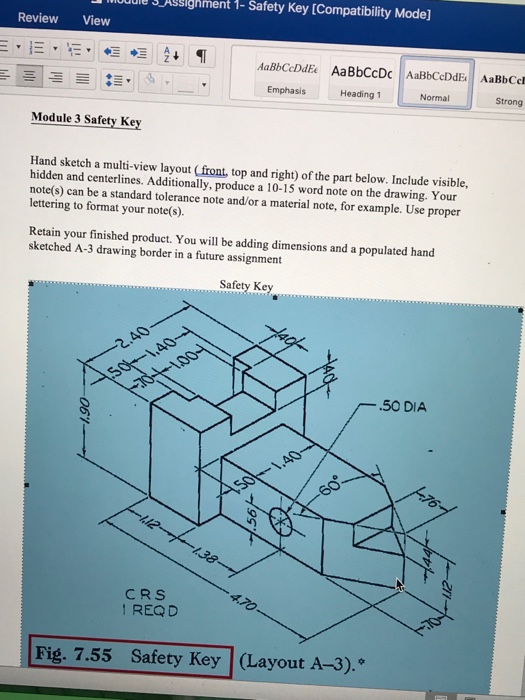

Hand sketch a multi-view layout ( front, top and right) of the part below. Include visible, hidden and centerlines. Additionally, produce a 10-15 word note on the drawing. Your note(s) can be a standard tolerance note and/or a material note, for example. Use proper lettering to format your note(s).

Retain your finished product. You will be adding dimensions and a populated hand sketched A-3 drawing border in a future assignment
