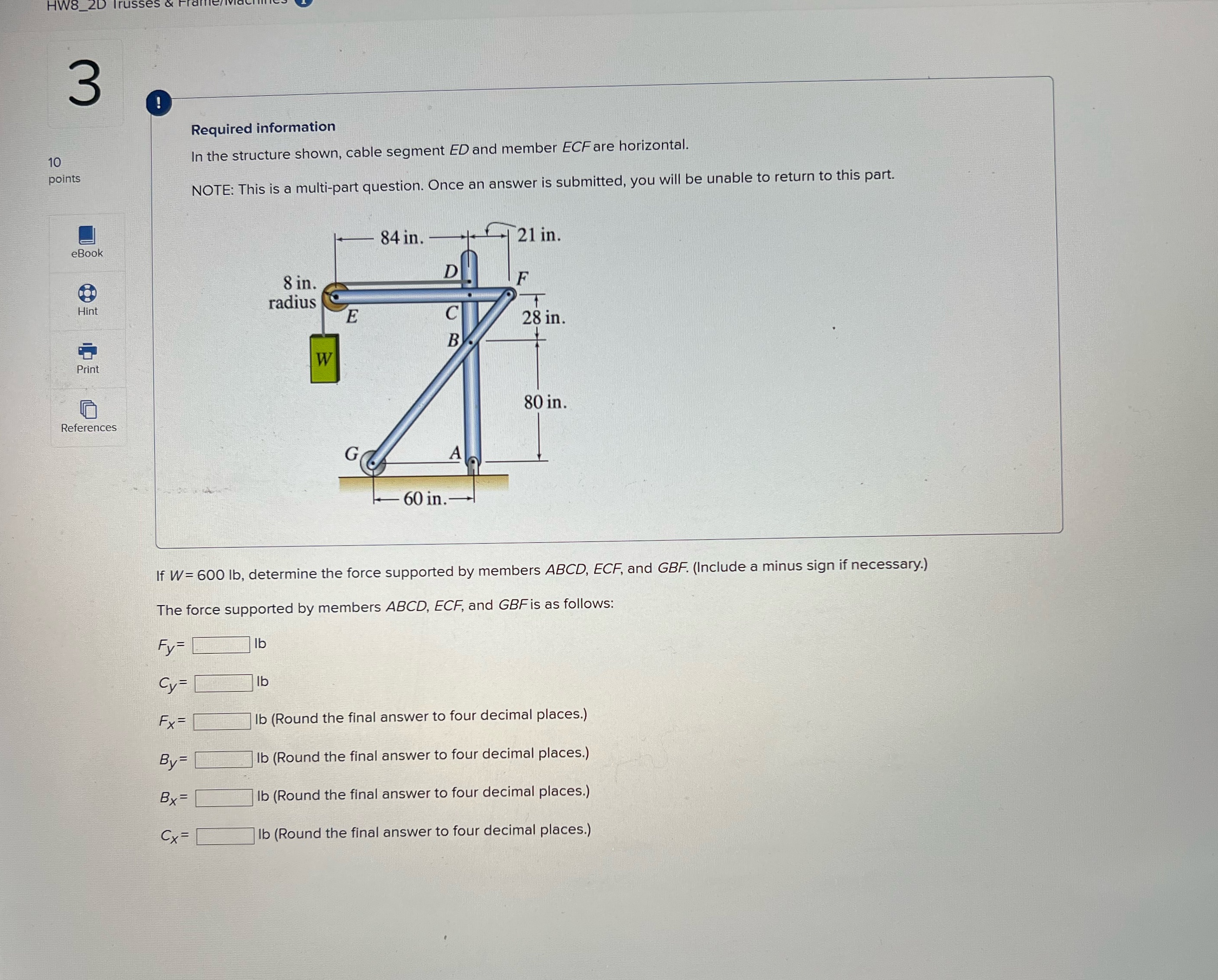

3 Required information 10 In the structure shown, cable segment ED and member ECF are horizontal. points NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. 84 in 21 in. Book 8 in D Hint radius E C 28 in. B Print WI n 80 in. References 60 in. - If W= 600 lb, determine the force supported by members ABCD, ECF, and GBF. (Include a minus sign if necessary.) The force supported by members ABCD, ECF, and GBF is as follows: Fy= Cy = lb FX = Ib (Round the final answer to four decimal places.) By = lb (Round the final answer to four decimal places.) By = lb (Round the final answer to four decimal places.) Cx= lb (Round the final answer to four decimal places.)
