Question: Help me with this 4 . 5 2 . Could the plot shown in Figure P 4 . 5 2 a be a physically correct

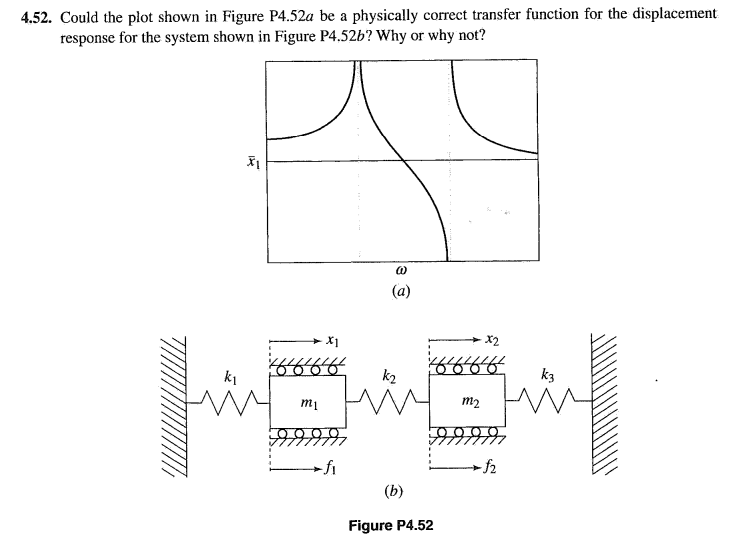

Help me with this 4.52. Could the plot shown in Figure P4.52a be a physically correct transfer function for the displacement response for the system shown in Figure P4.52b? Why or why not?
(b)
Figure P4.52
Help me with this 4 . 5 2 . Could the plot shown
