help with part c only.

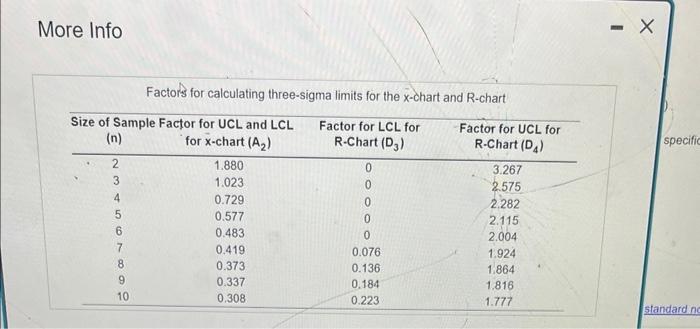

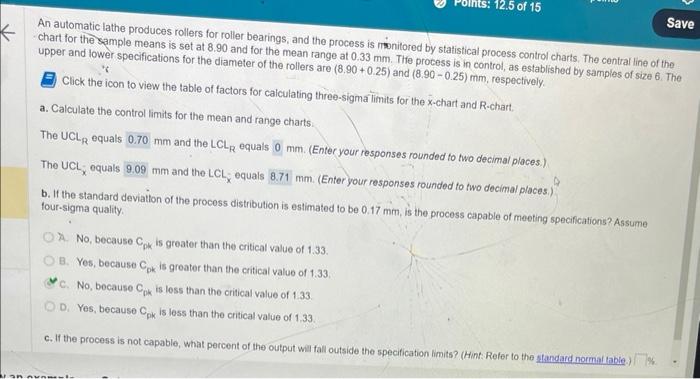

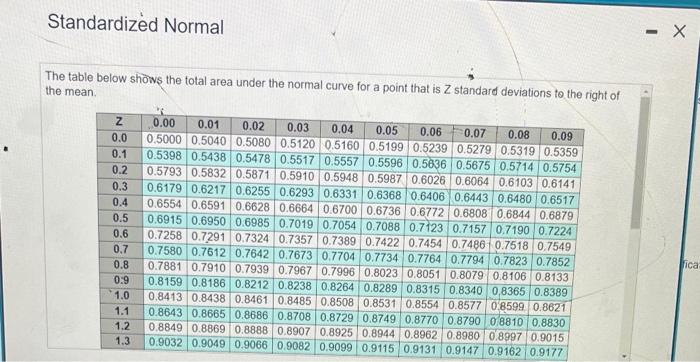

An automatic lathe produces rollers for roller bearings, and the process is nisonitored by statistical process control charts. The central line of the chart for the sample means is set at 8.90 and for the mean range at 0.33mm. The process is in control, as established by samples of size 6 . The Click the icon to view the table of factors for calculating three-sigma limits for the x-chart and R-chart. a. Calculate the control limits for the mean and range charts: The UCLR equals mm and the LCLR equals mm. (Enter your responses rounded to two decimal places.). The UCL equals mm and the LCL equals mm. (Enter your responses rounded to two decimal places.) b. If the standard deviatton of the process distribution is estimated to be 0.17mm, is the process capable of meeting specifications? Assume four-sigma quality. A. No, because Cpp is greater than the critical value of 1.33. B. Yes, because Cpk is greater than the critical value of 1.33 c. No, because Cik is less than the critical value of 1.33. D. Yes, because Cpik is less than the critical value of 1,33 . c. If the process is not capable, what percent of the output will fall outside the specification limits? ( Hint: Refer to the standard normal lable.) More Info Factors for calculating three-sigma limits for the x-chart and R-chart Standardized Normal The table below shows the total area under the normal curve for a point that is Z standard deviations to the right of the mean
